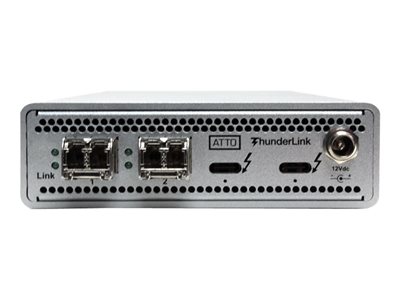

ATTO ThunderLink N3 3102 – network adapter – Thunderbolt 3 – 10 Gigabit SFP+ x 2 – TAA Compliant
ATTO ThunderLink N3 3102 – Network adapter – Thunderbolt 3 – 10 Gigabit SFP+ x 2 – TAA Compliant
AED5,999.00
The ATTO ThunderLink N3 3102 acts as an external Thunderbolt 3 to dual 10GbE adapter, connecting Thunderbolt enabled systems (all-in-ones, workbooks, mobile workstations) to 10Gb/s Ethernet networks and storage devices. When faced with the challenge of architecting solutions that allow guaranteed delivery and easy deployment into your workflow ATTO ThunderLink’s provide a purpose built solution. With 10Gb/s data transfer rates, Ethernet ThunderLink’s are the connectivity choice for bandwidth-intensive applications such as data back-up and restoration, clustered computing, IP content delivery, medical imaging, and video rendering. Now, the time tested combination of ATTO and 10GbE is being integrated with the latest in cutting edge high performance Thunderbolt 3 connectivity.
| Category | Details |
|---|
| General |
| Device Type | Network adapter |
| Form Factor | External |
| Interface (Bus) Type | Thunderbolt 3 |
| Localization | United States |
| Networking |
| Ports | 10 Gigabit SFP+ x 2 |
| Connectivity Technology | Wired |
| Data Link Protocol | 10 Gigabit Ethernet |
| Data Transfer Rate | 10 Gbps |
| Network / Transport Protocol | TCP/IP, UDP/IP, IPSec, IPv4 |
| Remote Management Protocol | SNMP, RMON |
| Status Indicators | Link/activity |
| Features | Flow control, VLAN support, packet filtering, Advanced Data Streaming (ADS), teaming support, Large Send Offload (LSO), adaptive load balancing (ALB), Energy Efficient Ethernet, TCP Segmentation Offload (TSO), 4K resolution support, Extended Message-Signaled Interrupts (MSI-X), security lock slot (cable lock sold separately), Watch Dog Timer (WDT), TCP/IP checksum offload, UDP/IP checksum offload, Link Aggregation, Message Signaled Interrupts (MSI), VLAN Tagging |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3az, IEEE 802.1Qbb, IEEE 802.1Qaz |
| Expansion / Connectivity |
| Interfaces | 1 x 10Gb Ethernet – SFP+ ¦ 2 x Thunderbolt 3 – 24 pin USB-C |
| Miscellaneous |
| Included Accessories | Power adapter, 2 x SFP+ LC transceivers |
| Compliant Standards | Plug and Play, EN55024, FCC Part 15 B, RoHS, EN 60950-1, cTUVus, EN 60825-1, EN 60825-2, RoHS 2011/65/EU, EN 55032 Class B |
| TAA Compliant | Yes |
| Power |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Software / System Requirements |
| OS Required | Apple macOS Sierra 10.12 or later |
| Dimensions & Weight |
| Width | 8.7 in |
| Depth | 4.1 in |
| Height | 1.2 in |
| Environmental Parameters |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 – 90% (non-condensing) |
