Audinate Dante AVIO 2×2 AES3/EBU I/O Adapter for Dante Audio Network

Add to Wishlist
Key Features
  • Plug & Play Operation
  • Sample Rates Up to 96 kHz
  • 16, 24 and 32-bit Audio Support
  • Synchronous Sample Rate Conversion
  • Power Over Ethernet (PoE) Support
  • Dante Domain Manager Ready

AED999.00

Add to Wishlist

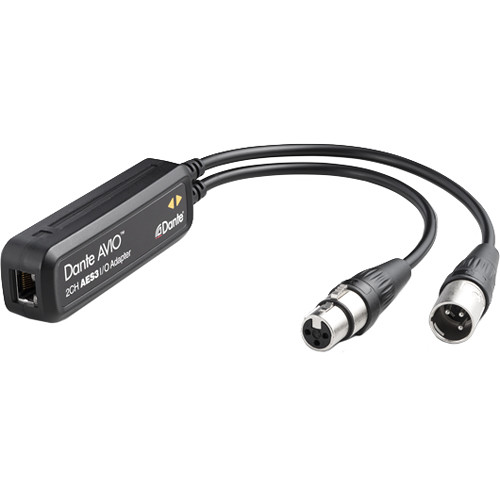

The Audinate Dante AVIO 2×2 AES3/EBU I/O Adapter for Dante Audio Network supports 2 x 2 channels, with high quality XLR input and output connectors and built-in asynchronous sample rate conversion. Use the AES3 Dante AVIO Adapters to add Dante networking to amplifiers, speaker processors, mixing consoles, video systems and more. Cost effective, compact, and built for the road, the Dante AVIO family of adapters bring the modern network connectivity that every audio pro needs in their toolbox.



  • Plug & play operation
  • Built for the road
  • Sample rates up to 96 kHz
  • 16, 24 and 32-bit audio support
  • Synchronous sample rate conversion
  • Excellent dynamic range, SNR and THD performance
  • Dante Audio over IP and AES67 RTP transport formats
  • Power over Ethernet (PoE) support
  • Dante Domain Manager ready





Plug & Play

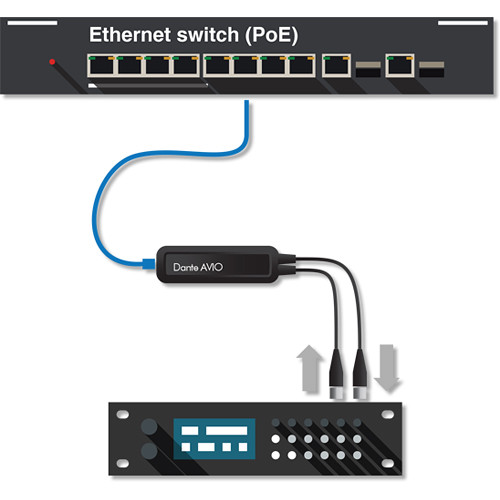

The Dante AVIO AES3 adapter is a complete, high performance Dante device, delivering all the automation and ease of use that have made Dante the most popular audio networking solution worldwide. The Dante AVIO AES3 adapter is automatically discovered and ready to use when connected, and no separate power supplies are required – just use a common PoE (Power over Ethernet) switch and any Dante AVIO adapter is ready to go.
Build For the Road
We’ve made all Dante AVIO adapters road-ready and tour-tough. Sonically welded ABS enclosures and quality hardware are used throughout, while cable assemblies are stress-tested to ensure reliable operation under grueling conditions. Toss them in your toolbox, show after show.
All Dante
Dante AVIO adapters are all fully functional Dante interfaces, with all the features you’d expect from Dante audio networking. Each one delivers bit-perfect audio reproduction, super-low latency, and sample-accurate synchronization across the entire network. All Dante devices automatically discover one another, and the entire system is managed by our easy-to-use Dante Controller software on any connected PC or Mac. Most importantly, every Dante device can connect to every other Dante device – no questions asked. All Dante AVIO adapters are fully compatible with Dante Domain Manager (DDM) for IT-level security and management, while AES67 is supported for connection to non-Dante networks.
Cost-Effective
Audinate Dante worked hard to make the Dante AVIO family of products a cost-effective addition to any system or piece of gear, so that everyone can enjoy the benefits of Dante. Audio networking has never been easier to or more affordable, no matter how you choose to use it.
SKU: ADP-AES3-AU-2X2 Category: Tag:
Audio Channels
2 in, 2 out
Signal to Noise Ratio
> 135dB
Connectors
RJ45, 1 XLR-M, 1 XLR-F
Power
Class 1 802.3af PoE
Sample Rates
44.1, 48, 96 kHz
Bit Depth
24
Dante Connection
1, 2, or 5ms (configurable using Dante Controller)
Impedance
110 Ohm balanced
Network Transport Protocol
Dante Audio over IP, AES67 RTP
Packaging Info
Package Weight
0.455 lb
Box Dimensions (LxWxH)
8.2 x 3.3 x 1.4″
