Audio-Technica 2000 Series ATW-2110b Wireless UHF Bodypack System


1,699.00 د.إ

Key Features
  • Band bI: 487.125 to 506.500 MHZ
  • 10 Selectable UHF Frequencies
  • ATW-R2100 UHF Diversity Receiver
  • ATW-T210 UniPak Transmitter

Audio-Technica ATW-2110BIĀ Overview

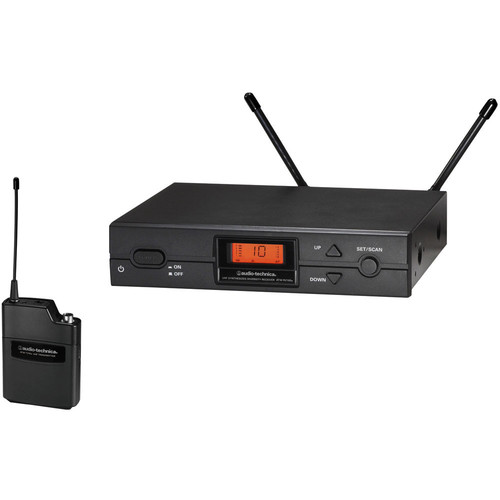

TheĀ ATW-2110b Wireless UHF Bodypack SystemĀ fromĀ Audio-TechnicaĀ bridges the gap between affordable wireless technology and professional level quality. It includes an ATW-T210 UniPak bodypack transmitter and an ATW-R2100 diversity UHF receiver that can be used when paired with a lavalier microphone in a variety of applications for live stage, fixed installations, rehearsals, public speaking, A/V rental houses, places of worship, and more.

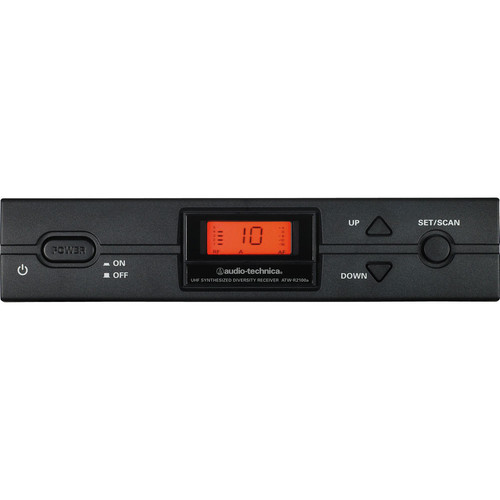

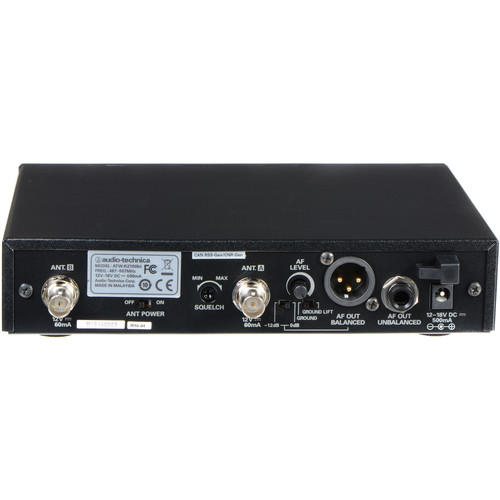

The ATW-R2100 receiver features True Diversity operation and selects between two receiver sections, reducing dropouts and radio frequency interference. Furthermore, it features 10 user selectable UHF frequencies, allowing 10 systems to be used simultaneously. Single touch frequency scanning automatically selects clear frequencies in the area. The rear panel features a balanced XLR output and an unbalanced 1/4″ phone connection. A back-lit LCD provides channel, AF, RF and diversity status information.

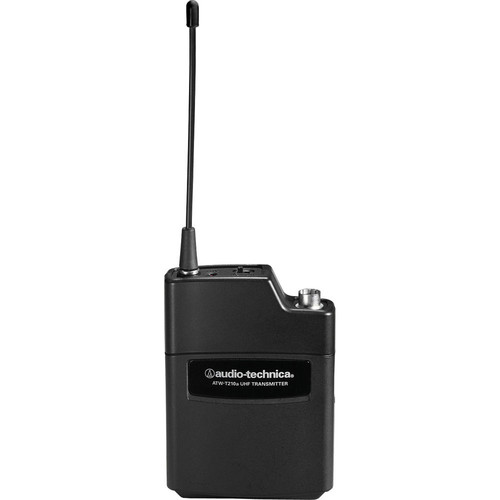

The ATW-T210 UniPak transmitter is a lightweight bodypack microphone transmitter that operates on the same frequencies as the receiver. The transmitter features a 4-pin Hirose connection input that is compatible with Audio-Technica “CW” lavaliers and headworn microphones, and select instrument cables. The transmitter operates up to 9 hours on two 1.5V AA batteries.

Serious advances in affordable professional wireless
Clear sound quality and rock-solid, dependable performance
Automatic frequency scanning
10 compatible user-switchable channels in one of two UHF frequency ranges
Antenna power available for powered antennas & other in-line RF devices
True Diversity operation selects the better signal from the two receiver sections, reducing dropouts
Tone Lock tone squelch system fights interference
Rugged metal half-rack receiver with soft-touch controls and LCD display
Balanced XLR and unbalanced 1/4″ output jacks enable use with a wide variety of audio gear
Switchable transmitter power output with high and low settings offered
Includes rack-mount kit and detachable UHF antennas
Ground-lift switch helps eliminate audible hum caused by ground loops between the sound system and receiver

Audio-Technica ATW-2110BIĀ Specs

System
Type of System UHF Frequency Agile Diversity
RF Carrier Frequency Range Band bI: 487.125 to 506.500 MHZ
Approx. Working Range 300′ typical (100 m)
Overall Frequency Response 100 Hz to 15 kHz
THD & Noise < 1% (at 1 kHz, ±20 kHz deviation)
# Of Channels 10 Total
Receiver
# Of Simultaneous Systems 10
Type of Receiver ATW-R2100 UHF Diversity Half-Rack Mount
Type of Outputs Balanced: XLR-male
Unbalanced: 1/4″ Phone
Headphone Monitoring No
Power Requirements 12-18 VDC, 500 mA
Battery Type/Approx. Life AC Power Only
Mounting Options Rack-Mount Adapters (Included)
Antenna Type Wide Band Diversity
Dimensions (WxDxH) 8.27 x 6.39 x 1.73″ (210 x 162.2 x 44 mm)
Weight 2.20 lb (1.0 kg)
Transmitter
Type of Transmitter ATW-T210 UniPak UHF Body-Pack Transmitter
Type of Input Connector 4-pin Hirose connection
Type of Microphone Wireless Essentials microphones and cables sold separately
Compatibility Compatible with Audio-Technica Wireless Essentials microphones / instrument cables featuring 4-pin Hirose connections
Battery Type/Approx. Life Two 1.5 V AA alkaline
Mute Switch Off/On Switch
Level Control Instrument / Microphone Level Trim Controls
Antenna Type Replaceable 1/4 wave whip antenna
Display LED Battery Indicator
Dimensions (WxDxH) 2.60 x 0.89 x 3.63″ (66 x 22.5 x 92.3 mm)
Weight 2.9 oz (81 g)
Packaging Info
Package Weight 4.94 lb
Box Dimensions (LxWxH) 15.1 x 12.7 x 4.15″
