Audio-Technica ATW-902A System 9 VHF Wireless Handheld Microphone System

Add to Wishlist

899.00 د.إ

Add to Wishlist
Key Features
  • 169 to 172 MHz, 4 Selectable Channels
  • Dipole Antenna for Extended Range
  • Channel, RF, and AF Peak Indicator LEDs
  • Balanced XLR and Unbalanced 1/4″ Outputs
  • Squelch Control
  • Volume Control
  • Cord Hook to Prevent Accidental Pull-Out
  • Channel Selector Switches
  • Power/Mute Button on Transmitter
  • Includes Quiet-Flex Stand Clamp

Audio-Technica ATW-902AĀ Overview

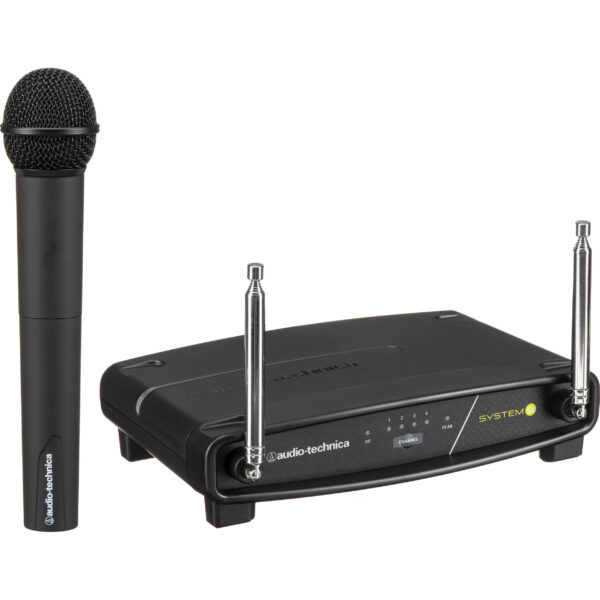

TheĀ Audio-Technica ATW-902A System 9 VHF Wireless Handheld Microphone SystemĀ is designed for live sound reinforcement applications. The system consists of a wireless VHF receiver and a wireless VHF handheld microphone transmitter. The receiver utilizes two dipole antennas for extended range, and allows you to select your VHF transmission frequency from 169 to 172 MHz.

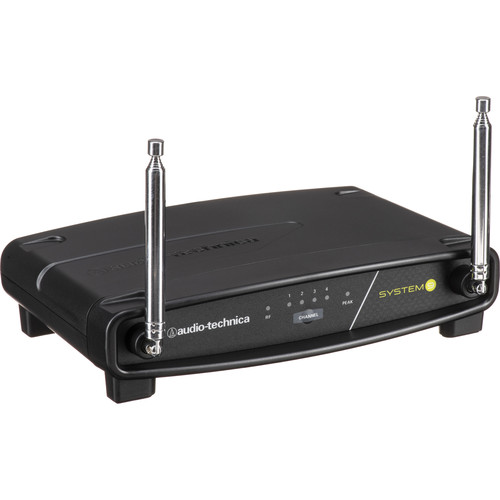

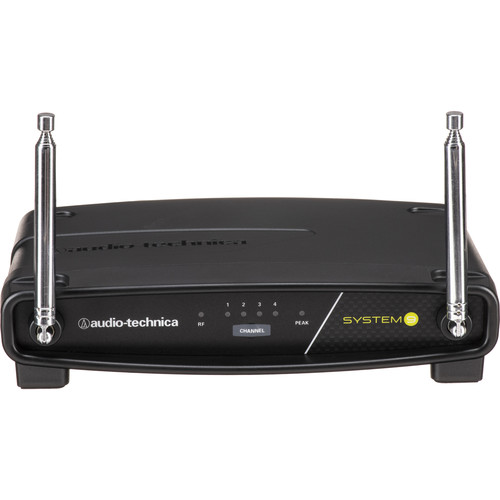

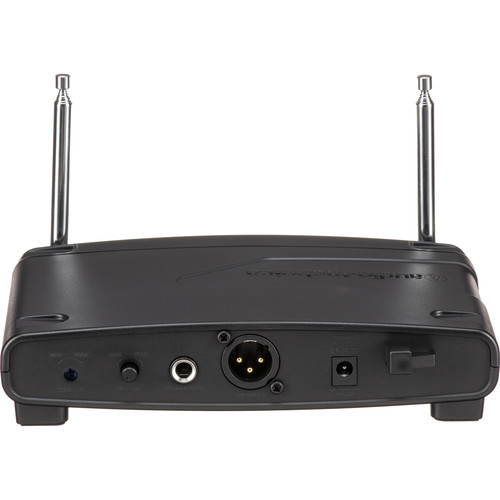

The receiver includes LED indicator lights for channel, RF, and AF peak. The back of the receiver includes a volume control knob, a squelch control knob, a balanced XLR audio output, and an unbalanced 1/4″ audio output. The receiver also includes a power cord hook to prevent accidental pull-out of the DC power supply.

The handheld microphone transmitter is powered by two AA batteries and includes a battery status LED indicator, channel selection DIP switches, and a power/mute button.

Selectable VHF Transmission Frequencies

Select four channels from 169 to 172 MHz

Dipole Antenna for Extended Range

The receiver utilizes two antennas to improve the range of the system

Squelch Control

The receiver features a squelch adjustment knob that controls the threshold for the radio signal that regulates audio output. If the radio signal from the microphone drops below the threshold, the squelch control mutes the audio output to prevent the transmission of radio interference and white noise from entering the speakers
SKU: ATW-902A Category: Tag:

Audio-Technica ATW-902AĀ Specs

Overall System
Type VHF High Band
Operating Frequencies 169 to 172 MHz
Modulation Mode FM
Maximum Deviation Ā±10 kHz
Dynamic Range ā‰„90 dB (A-weighted), typical
Total Harmonic Distortion (THD)
Operating Range 200′ (61.0 m), open range environment with no interfering signals
Operating Temperature Range 40 to 110Ā°F (4 to 43Ā°C), battery performance may be reduced at very low temperatures
Frequency Response 80 Hz to 13 kHz
Receiver Specifications
Receiving System Non-diversity, single-channel, dual-antenna system
Image Rejection 50 dB minimum
Audio Output Nominal Output Level
Balanced XLR: 350 mV (1 kHz modulation, 10 kHz deviation, 100-kOhm load)
Unbalanced 1/4″ (6.3 mm): 700 mV (1 kHz modulation, 10 kHz deviation, 100-kOhm load)
Power Supply 100 to 240 VAC (50/60 Hz) to 12 VDC at 0.5A (center positive) switched mode external power supply
Dimensions (W x H x D) 7.5 x 1.8 x 5.1″ / 190 x 46.2 x 129 mm
Weight 12.0 oz / 337 g
Handheld Transmitter
RF Power Output 10 mW
Spurious Emission Following federal and national regulations
Batteries 2 x 1.5 V AA (not included)
Battery Life 8 hours (alkaline), depending on battery type and use pattern
Dimensions (L x Diam) 9.9 x 2.1″ / 251.8 x 53.5 mm
Weight 9.2 oz / 260 g (without batteries)
Packaging Info
Package Weight 2.935 lb
Box Dimensions (LxWxH) 13.85 x 10.75 x 4.55″
