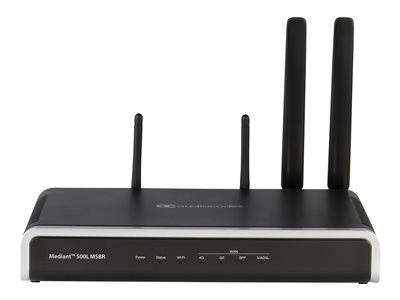

AudioCodes Mediant 500L MSBR – router – DSL modem – desktop
Tech overview
AudioCodes Mediant 500L MSBR – Router – DSL modem – 4-port switch – GigE
5,499.00 د.إ
The AudioCodes Mediant 500L MSBR is an all-in-one router combining access, data, voice and security in a single device. It is ideal for managed data, SIP trunking, hosted PBX and cloud services, and allows service providers to deploy flexible and cost-effective solutions and to maximize revenue opportunities while minimizing CAPEX and OPEX.
| Specifications | |
|---|---|
| General | |
| Device Type | Router – 4-port switch (integrated) |
| Enclosure Type | Desktop |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Capacity | |
| Maximum number of sessions | 60 |
| Maximum number of registered users | 200 |
| Jumbo Frame Support | Yes |
| Network / Transport Protocol | |
| TCP/IP, UDP/IP, L2TP, ICMP/IP, IPSec, PPPoE, PPPoA, IPoA, IPoE, DHCP, DHCPv6, IPv4, IPv6 | |
| Routing Protocol | |
| RIP-1, RIP-2, BGP, IGMPv2, OSPFv2, static IP routing, policy-based routing (PBR) | |
| Remote Management Protocol | |
| SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, CLI, TR-069, TR-098, TR-104, TR-181 | |
| Encryption Algorithm | |
| Triple DES, MD5, AES, TLS, 256-bit SHA | |
| Authentication Method | |
| RADIUS, TACACS | |
| Features | |
| Layer 2 switching, Syslog support, packet filtering, Intrusion Detection System (IDS), Intrusion Prevention System (IPS), DDos attack prevention, Weighted Random Early Detection (WRED), web server, Quality of Service (QoS), DHCP server, DHCP relay, Stateful Packet Inspection Firewall (SPIF), DHCP client, SYN Flooding, Ping of Death, Type of Service (ToS), DiffServ Code Point (DSCP) support, Zero-touch provisioning (ZTP), DMZ support, VLAN Tagging, High Precision 5ppm Clock, Point-to-Point Protocol (PPP), Multilink Point-to-Point Protocol (MLPPP), IPv4 and IPv6 dual stack, VDSL Super Vectoring | |
| Compliant Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x |
| Status Indicators | Power, status, WAN, ADSL, SFP |
| Communications | |
| Type | DSL modem |
| Digital Signaling Protocol | VDSL2, ADSL2+ over POTS |
| IP Telephony | |
| VoIP Protocols | SIP, RTP, SRTP |
| Voice Codecs | G.711, G.722, G.723.1, G.729a, T.38, AMR-WB, Opus-NB, Opus-WB, AMR-NB, SILK-NB, SILK-WB |
| Telephony Interfaces | 4 phone (ISDN BRI) |
| IP Telephony Features | Echo cancellation (G.168), echo cancellation (G.165), blacklisting |
| Expansion / Connectivity | |
| Interfaces | LAN: 4 x 10Base-T/100Base-TX/1000Base-T – RJ-45, WAN: 1 x VDSL2 / ADSL2+ over POTS, WAN: 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45, WAN: 1 x 100Base-X/1000Base-X – SFP (mini-GBIC), Management: 1 x console – RJ-45, USB: 1 x 4 pin USB Type A, 4 x BRI ST |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Dimensions & Weight | |
| Width | 11.7 in |
| Depth | 6.5 in |
| Height | 2 in |
