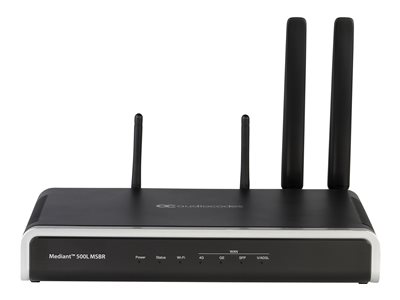

AudioCodes Mediant 500L MSBR – router – DSL/WWAN – 3G, 4G – desktop

Add to Wishlist

Tech overview

AudioCodes Mediant 500L MSBR – Router – DSL/WWAN – 4-port switch – GigE – 3G, 4G

AED4,099.00

Add to Wishlist

The AudioCodes Mediant 500L MSBR is an all-in-one router combining access, data, voice and security in a single device. It is ideal for managed data, SIP trunking, hosted PBX and cloud services, and allows service providers to deploy flexible and cost-effective solutions and to maximize revenue opportunities while minimizing CAPEX and OPEX.

SKU: M500L-I-AGECSLE Category: Tag:
Specifications
General
Device Type Router – 4-port switch (integrated)
Enclosure Type Desktop
Connectivity Technology Wired
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Capacity
Maximum number of sessions 60
Maximum number of registered users 200
Jumbo Frame Support Yes
Network / Transport Protocol
TCP/IP, UDP/IP, L2TP, ICMP/IP, IPSec, PPPoE, PPPoA, IPoA, IPoE, DHCP, DHCPv6, IPv4, IPv6
Routing Protocol
RIP-1, RIP-2, BGP, IGMPv2, OSPFv2, static IP routing, policy-based routing (PBR)
Remote Management Protocol
SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, CLI, TR-069, TR-098, TR-104, TR-181
Encryption Algorithm
Triple DES, MD5, AES, TLS, 256-bit SHA
Authentication Method
RADIUS, TACACS
Features
Layer 2 switching, Syslog support, packet filtering, Intrusion Detection System (IDS), Intrusion Prevention System (IPS), DDos attack prevention, Weighted Random Early Detection (WRED), web server, Quality of Service (QoS), DHCP server, DHCP relay, Stateful Packet Inspection Firewall (SPIF), DHCP client, SYN Flooding, Ping of Death, Type of Service (ToS), DiffServ Code Point (DSCP) support, Zero-touch provisioning (ZTP), DMZ support, VLAN Tagging, Point-to-Point Protocol (PPP), Multilink Point-to-Point Protocol (MLPPP), IPv4 and IPv6 dual stack, VDSL Super Vectoring
Compliant Standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x
Status Indicators
Power, status, WAN, ADSL, SFP
Communications
Type DSL modem / wireless cellular modem
Digital Signaling Protocol VDSL2, ADSL2+ over POTS
Cellular Protocol LTE
Generation 3G, 4G
Cellular Band LTE B3, LTE B7, LTE B20, LTE B1, LTE B5, LTE B8
Max Transfer Rate 150 Mbps
IP Telephony
VoIP Protocols SIP, RTP, SRTP
Voice Codecs G.711, G.722, G.723.1, G.729a, T.38, AMR-WB, Opus-NB, Opus-WB, AMR-NB, SILK-NB, SILK-WB
IP Telephony Features Echo cancellation (G.168), echo cancellation (G.165), blacklisting
Expansion / Connectivity
Interfaces
LAN: 4 x 10Base-T/100Base-TX/1000Base-T – RJ-45, WAN: 1 x VDSL2 / ADSL2+ over POTS, WAN: 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45, WAN: 1 x 100Base-X/1000Base-X – SFP (mini-GBIC), Management: 1 x console – RJ-45, USB: 1 x 4 pin USB Type A
Expansion Slots 1 (total) / 1 (free) x Mini-SIM
Power
Power Device External power adapter
Voltage Required AC 100-240 V (50/60 Hz)
Miscellaneous
Localization Europe
Dimensions & Weight
Width 11.7 in
Depth 6.5 in
Height 2 in
