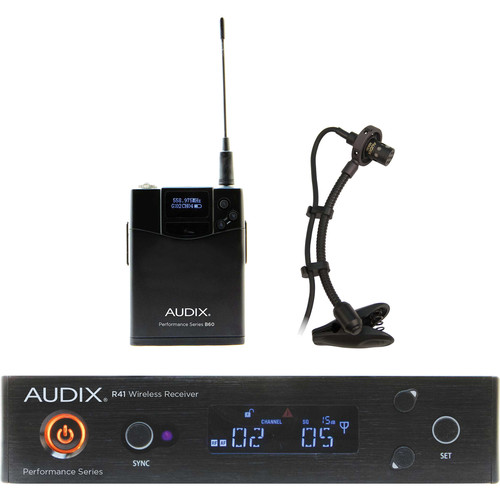

Audix AP41 Performance Series Single-Channel Instrument Wireless System with ADX20i Clip-On Condenser Microphone (522 to 554 MHz)

The Audix R41 Kit-A is a Performance Series single-channel UHF diversity receiver designed to deliver enhanced range and easy configuration for musicians, vocalists, presenters, and public speakers in houses of worship, concert venues, conferences, and live stage applications. It offers 106 pre-coordinated frequencies across 32 MHz of bandwidth in the 522 to 554 MHz frequency band. Use one wireless microphone (available separately) from up to 300′ away. One-touch sync and auto scan functions provide simple and efficient setup.

The high-contrast LCD shows a host of information such as battery level, frequency, and AF/RF signal strength, which can be optimized via adjustable AF and RF gain. XLR and 1/4″ outputs allow compatible connectivity with the balanced or unbalanced inputs on your mixing console. The R41 Kit-A ships with two antennas, a carrying case, an audio cable, one power supply, and a rackmount kit.

The Audix B60 is a Performance Series bodypack transmitter designed to deliver simple configuration and reliable wireless signal transmission for musicians, vocalists, presenters, and public speakers in houses of worship, concert venues, conferences, and live stage applications. It offers 64 MHz of bandwidth from 522 to 586 MHz, effectively covering A and B frequency groups for proper use with Audix Performance Series receivers.

The high-contrast LCD and three function buttons provide easy access to settings such as AF gain, 10/30 mW RF output power, and lock. Two supplied AA batteries power the B60 for up to 14 hours. The rugged metal housing features a belt clip for secure attachment to the performer and a soft mute button for quick on/off switching. A mini-XLR 3-pin input enables proper connectivity for a guitar, bass, lavalier mic, headset, or instrument microphone. The modular antenna design allows for compact storage and field serviceability.

From Audix, the ADX20I is a miniature condenser microphone designed for capturing instruments. The microphone’s pre-polarized condenser element reproduces sound that is more than suitable for capturing brass, woodwinds, percussion and more. The wide 40Hz to 20kHz frequency response accurately reproduces audio in pristine detail without noise and distortion. The ADX20’s low profile is ideal while mounted on instrument on stage or in studio. The ADX20 includes a shock mounted gooseneck and integral clamp for sturdy instrument mounting and flexible positioning.
