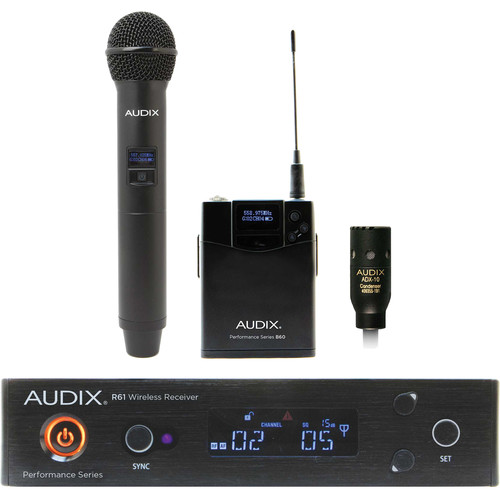

Audix AP61 OM2 L10 Single-Channel True Diversity Receiver with B60 Bodypack Transmitter, ADX10 Lavalier Microphone, and H60 OM2 Handheld Microphone Transmitter (522 to 586 MHz)

The Audix R61 Kit is a Performance Series single-channel true diversity receiver designed to deliver enhanced range and easy configuration for musicians, vocalists, presenters, and public speakers in houses of worship, concert venues, conferences, and live stage applications. It offers 207 pre-coordinated frequencies across 64 MHz of bandwidth in the 522 to 586 MHz frequency band. Use one wireless microphone (available separately) from up to 450′ away. One-touch sync and auto scan functions provide simple and efficient setup.

The high-contrast LCD shows a host of information such as battery level, frequency, and AF/RF signal strength, which can be optimized via adjustable AF and RF gain. XLR and 1/4″ outputs allow compatible connectivity with the balanced or unbalanced inputs on your mixing console. The R61 Kit ships with two antennas, two BNC cables, a carrying case, an audio cable, one power supply, and a rackmount kit.

The Audix B60 is a Performance Series bodypack transmitter designed to deliver simple configuration and reliable wireless signal transmission for musicians, vocalists, presenters, and public speakers in houses of worship, concert venues, conferences, and live stage applications. It offers 64 MHz of bandwidth from 522 to 586 MHz, effectively covering A and B frequency groups for proper use with Audix Performance Series receivers.

The high-contrast LCD and three function buttons provide easy access to settings such as AF gain, 10/30 mW RF output power, and lock. Two supplied AA batteries power the B60 for up to 14 hours. The rugged metal housing features a belt clip for secure attachment to the performer and a soft mute button for quick on/off switching. A mini-XLR 3-pin input enables proper connectivity for a guitar, bass, lavalier mic, headset, or instrument microphone. The modular antenna design allows for compact storage and field serviceability.

The Audix ADX10 is a miniature lavalier microphone with a cardioid polar pattern. It’s size and sensitivity response is more than suitable for interviews, video dialog, presentations, choir and theatrical applications and more.

The condenser microphone features an cable terminated with a mini 3-pin XLR connection. The cardioid polar pattern effectively minimizes noise and audio at the off-axis sections of the microphone and the tailored frequency response maximizes intelligibility of vocals.

The Audix H60 OM2 is a Performance Series handheld microphone transmitter with an OM2 capsule designed to deliver simple configuration and reliable wireless signal transmission for vocalists, presenters, and public speakers in houses of worship, concert venues, conferences, and live stage applications. It offers 64 MHz of bandwidth from 522 to 586 MHz, effectively covering A and B frequency groups for proper use with Audix Performance Series receivers. The hypercardioid dynamic capsule yields enhanced off-axis rejection, a 50 Hz to 16 kHz frequency response with a mild bass boost, and a high maximum SPL of approximately 140 dB.

A high-contrast LCD shows the current group, channel, frequency, and battery status. Dip switches provide access to three AF gain settings and the selectable 10/30mW RF output power. Two supplied AA batteries power the H60 OM2 for up to 14 hours. The rugged metal housing features a soft mute button for silent and quick on/off switching.
