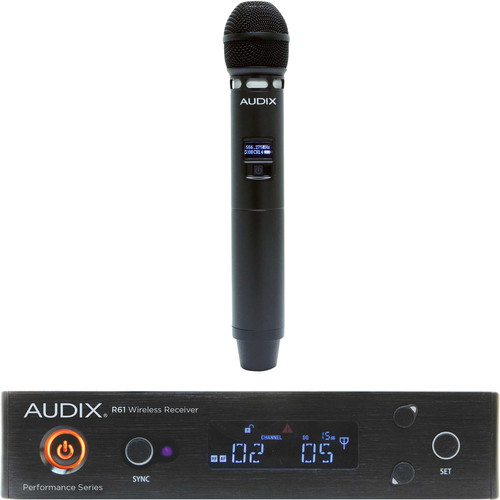

Audix AP61 VX5 R61 Single-Channel True Diversity Receiver with H60 VX5 Handheld Microphone Transmitter (522 to 586 MHz)

The Audix R61 Kit is a Performance Series single-channel true diversity receiver designed to deliver enhanced range and easy configuration for musicians, vocalists, presenters, and public speakers in houses of worship, concert venues, conferences, and live stage applications. It offers 207 pre-coordinated frequencies across 64 MHz of bandwidth in the 522 to 586 MHz frequency band. Use one wireless microphone (available separately) from up to 450′ away. One-touch sync and auto scan functions provide simple and efficient setup.

The high-contrast LCD shows a host of information such as battery level, frequency, and AF/RF signal strength, which can be optimized via adjustable AF and RF gain. XLR and 1/4″ outputs allow compatible connectivity with the balanced or unbalanced inputs on your mixing console. The R61 Kit ships with two antennas, two BNC cables, a carrying case, an audio cable, one power supply, and a rackmount kit.

The Audix H60 VX5 is a Performance Series handheld microphone transmitter with VX5 capsule designed to deliver simple configuration and reliable wireless signal transmission for vocalists, presenters, and public speakers in houses of worship, concert venues, conferences, and live stage applications. It offers 64 MHz of bandwidth from 522 to 586 MHz, effectively covering A and B frequency groups for proper use with Audix Performance Series receivers. The supercardioid condenser capsule yields enhanced off-axis rejection, a 40 Hz to 16.5 kHz frequency response, and a high maximum SPL of approximately 140 dB.

A high-contrast LCD shows the current group, channel, frequency, and battery status. Dip switches provide access to three AF gain settings and the selectable 10/30 mW RF output power. Two supplied AA batteries power the H60 VX5 for up to 14 hours. The rugged metal housing features a soft mute button for silent and quick on/off switching.
