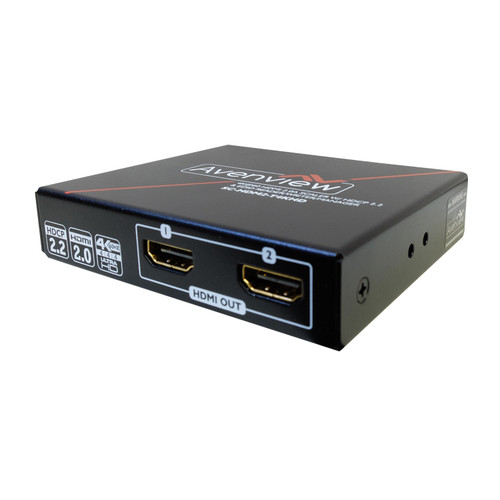

Avenview 4K HDMI Scaler with EDID Manager

Add to Wishlist
Key Features
  • Scale 1080p to UHD 4K / UHD 4K to 1080p
  • HDMI Input / Two HDMI Outputs
  • One Bypass Output / One Scaling Output
  • EDID Adjustment on Output 2
  • EDID Dial / Control Software (Windows)
  • Supports UHD 4K/60 4:4:4 8-Bit
  • Supports HDR (UHD 4K/60 4:2:0 10-Bit)
  • HDCP 2.2 Compliant
  • Read, Store, Overwrite EDID
  • 7 Adjustable EDID Modes

AED1,499.00

Add to Wishlist

The Avenview 4K HDMI Scaler with EDID Manager provides a scaling solution when you need to use a 4K source with a 1080p display or a 1080p source with a 4K display. It features one HDMI input and two HDMI outputs, and it allows EDID management on output 2. One application this device is useful for is streaming gameplay when your console’s resolution doesn’t match your display’s.

If you input a 1080p signal, output 1 will bypass the signal while output 2 upscales it to UHD 4K. The frame rate of the source signal is maintained. For example, 1080p60 upscales to 4K/60. Furthermore, you can make EDID adjustments to output 2 using the EDID dial or the included control software. If you input a 4K signal, output 1 will downscale it to 1080p and output 2 will bypass it. In either case, the bypassed output can be left alone or connected to a matching display.

Key Features
  • HDMI input
  • Two HDMI outputs (one upscales/downscales, one bypasses)
  • Upscales 1080p to UHD 4K, downscales 4K to 1080p (frame rate is maintained)
  • Output 2 allows EDID adjustments using the EDID dial or the included software (Windows)
  • HDMI 2.0a compliant
  • Supports UHD 4K/60 4:4:4 8-bit
  • Supports HDR (UHD 4K/60 4:2:0 10-bit)
  • HDCP 2.2 compliant
  • Able to read and store the EDID of displays (monitors or projectors)
  • Able to overwrite the EDID into the EDID reader/re-timer or the HDMI displays
  • Built-in default EDID
  • Re-synthesizes input HDMI stream and maintains or improves signal integrity
  • 7 adjustable EDID modes
SKU: SC-HDM2-T4KHD Category: Tag:
Input
1 x HDMI type A
1 x mini-USB
Output
2 x HDMI type A

Output 1: Bypass or upscale to 4K
Output 2: Downscale to 1080p or bypass
HDR Support
Yes
Supported Resolution
3840 x 2160 at 24/25/30/50/60 (4:4:4 8-bit)
1920 x 1080p at 24/25/30/50/60
HDR Support: 3840 x 2160 4:2:0 10-bit
Bypass Only: 720 x 480p, 720 x 576p, 1280 x 720p
HDMI Compliance
HDMI 2.0a
HDCP Compliance
HDCP 2.2
Audio Support
5.1 / 7.1 lossless Dolby TrueHD and DTS-HD surround sound
Flash EEPROM
256 bytes (non-volatile)
Control
USB
Video Bandwidth
Single-link 600 MHz (18 Gb/s)
Sampling
4:2:0, 4:2:2, and 4:4:4
Power Supply
5 VDC, 2 A
Power Consumption
4 W
ESD Protection
Human Body Model: ±8 kV (air-gap discharge) and ±4 kV (contact discharge)
Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
-4 to 140°F / -20 to 60°C
Relative Humidity
20 to 90% RH (no condensation)
Dimensions
3.7 x 3.2 x 1″ / 9.4 x 8.1 x 2.5 cm
Weight
0.6 lb / 272 g
Packaging Info
Package Weight
1.25 lb
Box Dimensions (LxWxH)
7.9 x 5.6 x 3″
