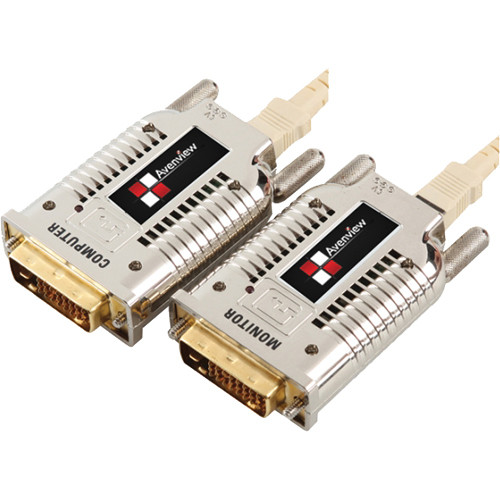

Avenview FO-DVI-1000M-EMI DVI Extender over Fiber with EMI Shielding

Add to Wishlist
Key Features
  • Extends Signals up to 3300′ (1000 m)
TheĀ Avenview FO-DVI-1000M-EMI DVI Extender over Fiber with EMI ShieldingĀ lets you extend digital flat panel signals up to 1650ā€™ (500 m) at 1920 x 1200 and up to 3300ā€™ (1000 m) at 1280 x 1024 away from the host via TMDS digital signal and EDID transmission with only 1 fiber.

AED4,999.99

Add to Wishlist

Avenview FO-DVI-1000M-EMIĀ Overview

TheĀ Avenview FO-DVI-1000M-EMI DVI Extender over Fiber with EMI ShieldingĀ lets you extend digital flat panel signals up to 1650ā€™ (500 m) at 1920 x 1200 and up to 3300ā€™ (1000 m) at 1280 x 1024 away from the host via TMDS digital signal and EDID transmission with only 1 fiber.

FO-DVI-1000M-EMI consists of both the receiver and transmitter. This is a solution for applications where the signal needs to be transmitted over a long distance.

High-speed and long distance transmission by optical system
SC type multi-mode fiber (1 fiber)
Fully compatible with DVI standard
With EMI shielding
Corresponding to TMDS signal (single link)
R, G, B, clock signal is transmitted by 1 multi-mode optical fiber
Self detecting function for EDID information
Small form factor
SKU: FO-DVI-1000M-EMI Category: Tag:

Avenview FO-DVI-1000M-EMIĀ Specs

Frequency Bandwidth 1.65 Gbps (single link)
Connector DVI 24-pin plug and SC connector
Power Consumption Transmitter & Receiver: Maximum 1 W
Supported Resolution & Distance WUXGA 1920 x 1200 @ 1650′ (500 m)
UXGA 1600 x 1200 @ 2300′ (700 m)
SXGA 1280 x 1024 @ 3300′ (1000 m)
Optical Source 850 nm VCSEL
Fiber type 50/125 or 62.5/125
Converter O/E: PIN photo diode
Operating Temperature 32 to 125.6ĖšF (0 to 50ĖšC)
Storage Temperature -4 to 158ĖšF (-20 to 70ĖšC)
Packaging Info
Package Weight 0.745 lb
Box Dimensions (LxWxH) 6.4 x 5.7 x 2.7″
