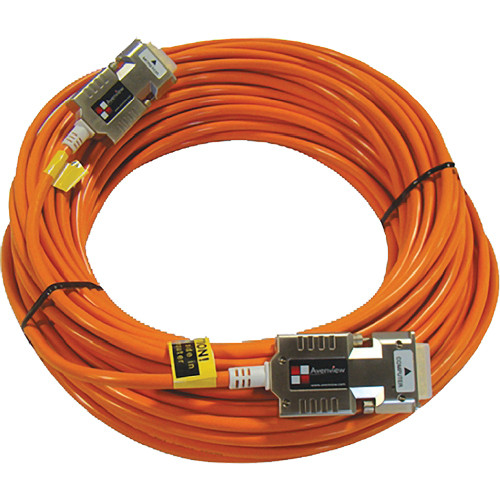

Avenview FO-DVI-25MM Fiber Optical Cable System for DVI-D Extender (82’/25 m)

Add to Wishlist

AED3,699.99

Add to Wishlist

Avenview FO-DVI Overview

The Avenview FO-DVI-25MM Fiber Optical Cable System for DVI-D Extender (82’/25 m) allows you to connect a single-link digital DVI display up to 330’ (100 m) from a computer with no loss of signal, delivering crystal clear digital images almost instantly.

The cable system is an integrated DVI-D cable solution, which features fiber optic components, built-in DDC signals, and DVI connectors. The DVI-D fiber optical cables are ideal for a wide range of applications such as video wall systems, large LED sign boards, medical imaging equipment, airplane on-board video systems, home theaters, TV broadcast stations, auditoriums, and conference room video equipment.

System with only optical fiber cables, without DDC corresponding to TMDS signal
High-speed and long distance transmission by optical fiber
Fully compatible with the DVI standard of DDWG
Use of standard DVI plug
R, G, B, clock signal transmitted via optical fiber
Supports up to WUXGA (1920 x 1200) resolution
DDC signal and 5 V power line is transmitted via a copper line
No EMI characteristics, suitable for medical instruments and airplanes
SKU: FO-DVI-25-MM Category: Tag:

Avenview FO-DVI Specs

Input Signal TMDS signal (DVI 1.0 standard)
Output Signal TMDS signal (DVI 1.0 standard)
Video Bandwidth 1.65 Gbps
Supported Resolution & Distance Up to WUXGA 1920 x 1200 @ 330′ (100 m)
Optical Converter FO-DVI-XX-MM Transmitter: 4-channel 850 nm multi-mode VCSEL
FO-DVI-XX-MM Receiver: 4-channel GaAs PIN photo diode
DVI Connector Type 24-pin DVI-D plug
Length Cable: 82′ (25 m)
Dimensions Extender: 2.8 x 1.6 x 0.6″ (71.12 x 40.64 x 15.24 mm)
Weight Approximately 4.5 lb (2.04 kg)
Packaging Info
Package Weight 5 lb
Box Dimensions (LxWxH) 13.5 x 12.5 x 4″
