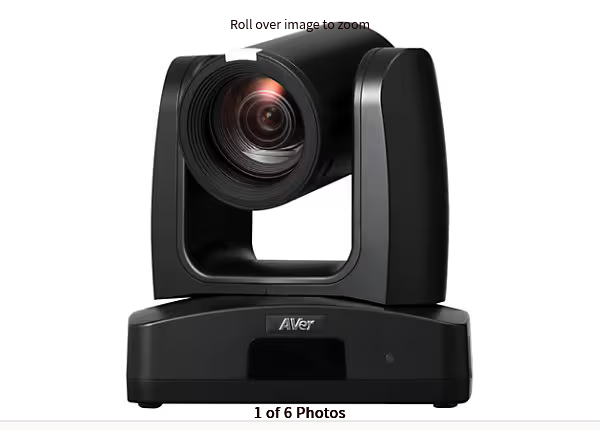

AVer TR323NV2 – conference camera – TAA Compliant

Add to Wishlist

Quick tech specs

  • Conference camera
  • indoor
  • 8 MP
  • audio
  • GbE
  • PoE Plus
  • PTZ
  • color
  • 1400 TVL
  • HDMI, 3G-SDI, USB
  • MJPEG, YUV
  • TAA Compliant

د.إ16,199.00

Add to Wishlist
The AVer TR323NV2 AI auto tracking camera delivers professional-grade lectures, sermons, trainings or whatever you need to stream! The 21x optical zoom, powerful 8MP camera and 4K resolution offer the range and picture quality to produce the high-quality productions. The advanced artificial intelligence (AI) technology allows you to track your speaker (full or half body) or preset shoot zone without a dedicated camera operator. You have all you need to connect with ease in any environment.
SKU: PTR323NV2 Category: Tag:
Category Details
Overview
Brand AVer
Product Line AVer
Model TR323NV2
Manufacturer AVer
Network & Communication
Network Interface Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols ARP, DHCP, HTTP, IGMP, IMCP, IPv4, IPv6, RTCP, RTMP, RTP, RTSP, TCP/IP, UDP/IP
Connectivity
Connectivity Technology Wired
Ports 3G-SDI, Audio line-in/microphone (3.5 mm jack), HDMI, LAN/power (RJ-45), Serial RS-232, Serial RS-422, USB 3.0 (9 pin USB Type B)
Display & Graphics
Image Sensor Size 1/2.8″
Image Sensor Type CMOS
Tilt -30 to +90 degrees
Touchscreen No
Video
Audio Formats AAC-LC, PCM
Audio Support Yes
Audio Support Features 2-channel audio support
Camera Mechanical Design Pan / tilt / zoom
Control Interface RS-232, RS-422
Digital Zoom 12x
Horizontal Resolution 1400 TV Lines
Max Frame Rate 60 frames per second
Max Panning Speed 200 degrees/second
Max Tilting Speed 200 degrees/second
Panning Range -170 to +170 degrees
Shutter Speed (Max) 1/10000 second
Shutter Speed (Min) 1/1 second
Video Modes 1080p, 4K, 720p
Video Signals 3G-SDI, HDMI, USB
Camera
Camera Type Conference camera
Power
Low Voltage Power PoE Plus
Power Consumption 19 watts
Power Device Type Power adapter
Required Voltage DC 12 volts
Software
Software Type AVer PTZ Manager, CaptureShare, OBS Plug-in, PTZ Control Panel, PTZ Link
Technical Information
Angular Field of View (D, Max) 66.4 degrees
Angular Field of View (D, Min) 3.3 degrees
Angular Field of View (H, Max) 52.26 degrees
Angular Field of View (H, Min) 2.66 degrees
Angular Field of View (V, Max) 41.26 degrees
Angular Field of View (V, Min) 2 degrees
Power Device Form Factor External
Focus Modes Automatic, Manual
Indoor/Outdoor Indoor
Lens Aperture F/1.6-3.8
Max Focal Length 110 mm
Max Operating Temperature 104 degrees Fahrenheit
Min Focal Length 5.3 mm
Min Operating Temperature 32 degrees Fahrenheit
Minimum Illumination 0.5 lux (30 fps, F1.6, 50 IRE, AGC max)
Operating Humidity 20 – 80%
Optical Zoom 21x
Sensor Size (metric) 9.1 mm (1/2.8″)
Total Pixels 8,000,000 pixels
Video Formats MJPEG, YUV
Video Input Color
Product Information
Features Auto white balance, Backlight Compensation (BLC), Human Detection, Hybrid Mode, Manual white balance, NDI control, Noise Reduction control, Presenter Mode, Presenter tracking, Secure Reliable Transport (SRT) ready, Tally light, UHD 2160p (4K) capture resolution, USB audio class (UAC 1.0), USB video class (UVC 1.1), VISCA over IP, Voice tracking, Wide Dynamic Range (WDR), Zone Mode, Zone tracking
Packaged Quantity 1
Security Slot Type Kensington security slot
Included Items
Cables 1 x DB-9 to DIN-8 cable, 1 x power cable, 1 x RS232 cable
Included Accessories Cable fixing plate, Ceiling mount kits, Remote control, Screw kit
Dimensions & Weight
Height 7.6 inch
Weight 4.41 lbs
Width 7.1 inch
Depth 5.7 inch
Physical Characteristics
Color Category Black
Certifications & Listings
Compliant Standards IEEE 802.3at
ENERGY STAR Certified No
EPEAT Compliant No
TAA Compliant Yes
TCO Certified No
