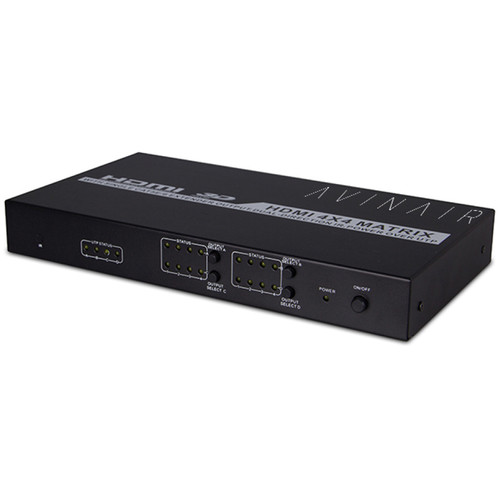

Avinair Spitfire Pro 4×4 HDMI Matrix Extender over Cat5e/6

Add to Wishlist
  • Four HDMI/Four RJ45 Simultaneous Outputs
  • Any Input to Any or All Outputs
  • Full HD 1080p up to 230′ via Cat6
  • Control via LAN, RS-232, IR, Front Panel
  • PoE to Receiver Side
  • Maintains Matrix Status at Power-Off
  • Skips Unconnected Inputs at Power-On
  • HDMI 1.3 (with 1.4 3D Function Support)
  • HDCP 1.2 Compliant
  • EDID Dynamic Mixing Management

AED3,799.00

Add to Wishlist

Featuring four HDMI and four RJ45 outputs, theĀ AVInAir Spitfire Pro 4×4 MatrixĀ lets you simultaneously output locally and remotely (1080p up to 230 ft over Cat6 / 170 ft over Cat5e) to compatible Spitfire Pro receivers. A true matrix extender, it allows you to output any source via a single output or all outputs. Make your selections via LAN, RS-232, dual direction IR control, or the front panel.

This extender also offers convenient power features. It carries power over UTP, so the receiver side requires no power adapters, and it automatically remembers the matrix status at power-off and auto-skips unconnected inputs during power-on.

Key Features
  • Four HDMI and four RJ45 simultaneous outputs
  • Any input to any or all outputs
  • Extend 1080p up to 230 ft over Cat6 / up to 170 ft over Cat5e
  • Control via LAN, RS-232, dual direction local IR, or the front panel
  • Carries power over UTP to receiver side
  • Automatically remembers matrix status at power-off
  • Auto-skips unconnected inputs during power-on
  • PCM, Dolby-AC3, DTS 7.1, and DSD audio support
  • HDMI 1.3 interface standard
  • HDMI 1.4 3D function support
  • HDCP 1.2 compliant
  • EDID dynamic mixing management
  • Cat5e/6 port EDID call back support
  • ESD protection level HBM Ā±8 kV (Contact Discharge) for any input and output port
  • Industrial metal case
SKU: AV-SF-HM404A Category: Tag:
Interface
4 x HDMI type A inputs, female
4 x HDMI type A outputs, female
4 x Cat5e/6 RJ45 outputs
4 x IR 3.5 mm outputs
4 x IR 3.5 mm inputs
1 x RS-232 DB9 port
1 x LAN RJ45 port
1 x 12 VDC power input
Resolutions Supported
1080p, 1080i, 720p, 576p, 576i, 480p, 480i
HDMI Standard
HDMI 1.3 (with HDMI 1.4 3D function support)
HDCP Compliant
HDCP 1.2
Input Video Signal
0.5 – 1 Vpp
Input DDC Signal
5 Vpp (TTL)
Supported Audio
PCM, Dolby-AC3, DTS 7.1, DSD, maximum eight channels
Max. HDMI Cable Distance
ā‰„50 ft (15 m) Using 26 AWG cabling
Can be extended with amplifier in most cases
Max. Cat5e/6 Cable Distance
Cat5e:
Up to 170 ft (50 m) @ 1080p
Up to 230 ft (70 m) @ 1080i/720pCat6:
Up to 230 ft (70 m) @ 1080p
Up to 300 ft (90 m) @ 1080i/720p
LED Indicators
Power (Green)
Extender output connection status (Green)
Matrix status (Yellow)
IR Frequency
38 KHz
ESD Level
HBM Ā±8 kV (Contact discharge)
Housing
Industrial metal case
Compliance
FCC, CE
Operating Temperature
32 to 104Ā°F (0 to 40Ā°C)
Storage Temperature
-4 to 140Ā°F (-20 to 60Ā°C)
Power Consumption
< 30 W (With PoE function turned on)
Dimensions
11.0 x 6.0 x 1.6″ (28 x 15 x 4 cm)
Weight
5.5 lb (2.5 kg)
Packaging Info
Package Weight
2.5 lb
Box Dimensions (LxWxH)
18.4 x 9.7 x 3.7″
