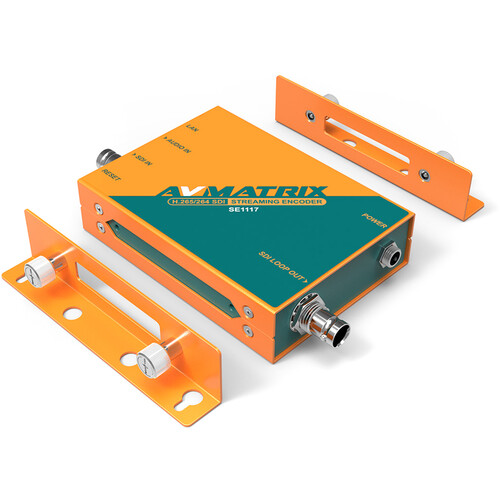

AVMATRIX H.264/H.265 SDI Streaming Encoder

Add to Wishlist
Key Features
  • Live Stream without Computer Connection
  • Send to Streaming Server via IP Address
  • SDI Input & Loop Out; Ethernet Interface
  • Independent 3.5mm Audio Input
  • Stream 1080p60 Video with Embedded Audio
  • Choose to Stream Audio Only
  • Main/Sub Dual Streaming
  • Web Management User Interface
  • Image and Text Overlay
  • Mirror Image/Flip

AED1,499.00

Add to Wishlist

Allowing you to output to a streaming server via an IP address, the AVMATRIX H.264/H.265 SDI Streaming Encoder lets you efficiently live stream without connecting to a computer. Featuring an SDI input and loop output as well as an independent 3.5mm audio input, it allows you to encode up to 1080p60 video with embedded audio into an IP stream, or choose to encode audio only, and send out either signal over an Ethernet interface while monitoring the input video source locally.

You can send to popular streaming destinations such as Facebook, YouTube, and Wowza for applications including live weddings, sporting events, live medical broadcasts, and educational activities. The encoder allows dual streaming via a main stream and a sub stream. Additionally, image and text overlay and mirror image/flip can be applied over your source. All the different options are selectable via a Web user interface.

The encoder has a default IP address and can automatically obtain a new IP address when it is using DHCP on the network. You can disable DHCP and configure the encoder and computer’s network in the same network segment.

Encoding Resolution
640 x 360 to 1920 x 1080 / 1 to 60 fps
Video Bitrate
16 Kb/s to 12 Mb/s
Audio Bitrate
24 to 320 Kb/s
Network Protocols
HTTP, RTSP, RTMP, RTP, UDP, Multicast, Unicast, and SRT
SKU: SE1117 Category: Tag:
Inputs / Outputs
Video Inputs
1x BNC (3G-SDI)
Audio Inputs
1x 1/8″ / 3.5 mm TRS
Video Outputs
1x BNC (3G-SDI) (Loop Output)
Audio Outputs
No
Other I/O
1x RJ45 LAN
Expansion Slots
No
Format Support
Input Video Format
SDI
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 23.98/24/25/29.97/30/50/59.94/60 fps
576p 50 fps
576i / 625 lines 50 fps
480p 59.94/60 fps
480i / 525 lines 59.94/60 fps
Output Video Format
SDI
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 23.98/24/25/29.97/30/50/59.94/60 fps
576p 50 fps
576i / 625 lines 50 fps
480p 59.94/60 fps
480i / 525 lines 59.94/60 fps
Embedded Audio
SDI
Standards
HDR Support
No
IP Streaming
Video IP Encoding
H.264, H.265: 640 x 360 to 1920 x 1080
Audio IP Encoding
AAC, G.711, MP2, MP3
Power
Power I/O
1x Barrel (12 VDC ) Input
Power Consumption
5 W
Environmental
Operating Temperature
32 to 72°F / 0 to 40°C
Storage Temperature
-4 to 158°F / -20 to 70°C
General
Dimensions
4.1 x 3 x 1″ / 104 x 76 x 25 mm
Weight
12 oz / 340 g
Packaging Info
Package Weight
1.325 lb
Box Dimensions (LxWxH)
6.9 x 6 x 2.9″
