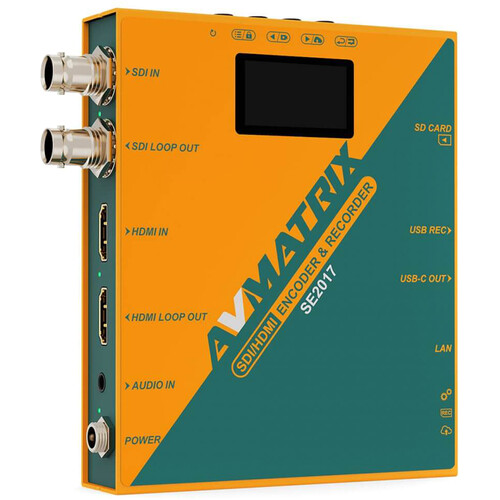

AVMATRIX SE2017 3G-SDI/HDMI Streaming Encoder/Recorder

Add to Wishlist
Key Features
  • Video Encoder and Recorder
  • Supports up to 1080p60 Video
  • HDMI and SDI Inputs, 3.5mm Audio Input
  • HDMI and SDI Loop Outputs
  • USB-C Video Capture Output
  • USB-A and SD Card Recording Slots
  • PoE RJ45 Port, DC Power Supply
  • Onboard Controls, OLED Screen

AED1,799.00

Add to Wishlist

Stream and record up to 1080p60 video to various media platforms or devices using this SE2017 3G-SDI/HDMI Streaming Encoder/Recorder from AVMATRIX. The SE2017 features HDMI and 3G-SDI input and output ports capable of supporting up to 1080p60 video. A USB-C capture output can function as a webcam with your Linux or macOS computer to livestream to services like Twitch, YouTube, Facebook, or Zoom. An RJ45 LAN port provides additional streaming support and PoE for flexible connectivity.

Connect a line audio source via 3.5mm input and the included DC power adapter via barrel input. RTSP, RTMP, SRT, HTTP-FLV, unicast, and multicast protocols deliver video to up to six platforms simultaneously. You can even record your stream directly to an SD card or USB disk using the SD card slot and USB-A port. Onboard button controls and an OLED screen make for intuitive control and real-time status information.

SKU: SE2017 Category: Tag:
Inputs / Outputs
Video Inputs
1x HDMI Female
1x BNC (3G-SDI) Female
Audio Inputs
1x 1/8″ / 3.5 mm TRS Line Female
Video Outputs
1x HDMI Female (Loop Output)
1x BNC (3G-SDI) Female (Loop Output)
1x USB-C
Audio Outputs
No
Other I/O
1x RJ45 LAN Input/Output
1x USB-A Input
Expansion Slots
No
Format Support
Input Video Format
HDMI
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 50/59.94/60 fps
720p at 23.98/24/25/29.97/30/50/59.94/60 fps
576i / 625 lines at 50 fps
576p at 50 fps
480p at 59.94/60 fps
480i / 525 lines at 59.94/60 fps
BNC
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i at 50/59.94/60 fps
720p at 23.98/24/25/29.97/30/50/59.94/60 fps
480i / 525 lines at 59.94 fps
576i / 625 lines at 50 fps
Output Video Format
USB-A
1080p up to 60 fps
Standards
HDR Support
Not Specified by Manufacturer
IP Streaming
Video IP Encoding
RTMP, RTP, RTSP, SRT, UDP: 720 x 480 to 1920 x 1080 at 24p, 25p, 30p, 50p, 60p (2 to 32 Mb/s)
RTMP, RTP, RTSP, SRT, UDP: 720 x 480 to 1280 x 720 at 24p, 25p, 30p, 50p, 60p (2 to 32 Mb/s)
Audio IP Encoding
AAC: 64.00 to 320.00 Kb/s
Hardware
Media Card Reader
1x SD (Unspecified Type)
Wireless
Yes
Power
Power I/O
1x Barrel (12 VDC at 0.3 A) Input
Power Consumption
Device: 4.5 W
Environmental
Operating Temperature
-4 to 140°F / -20 to 60°C
Storage Temperature
-22 to 158°F / -30 to 70°C
General
Dimensions
4.9 x 4.1 x 1″ / 125.5 x 104 x 24.5 mm
Weight
19.4 oz / 550 g
Packaging Info
Package Weight
1.97 lb
Box Dimensions (LxWxH)
6.7 x 5.6 x 3.6″
