Avocent SwitchView 1000 4 Port KVM Switch w/ OSD
The Avocent SwitchView 1000 4SV1000-001 rack mount, 4-port KVM switch provides PS/2 and/or USB connectivity for SMB server rooms.Ā This single-user KVM switch has an on-screen display (OSD) and supports 2048 x 1536 video resolutions. With a 1U high design, this 4-port KVM switch does not compete for valuable rack space in SMB server rooms. The 4SV1000-001 is flash upgradeable for fast and easy updates. The password protection feature gives you the benefit of added security access to your business-critical servers.
Ā

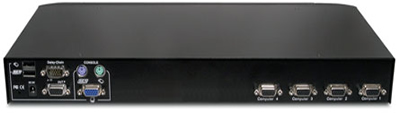

Avocent SwitchView 4SV1000 KVM Switch Backside
Avocent SwitchView 4SV1000-001 Features:
- On-screen display (OSD): Simple control through an on screen menu
- Password protection: Secure access is based on password protection
- Programmable autoscan: Customize scanning times between attached systems
- Flash upgradeable: Convenient upgrades mean that the product never goes out of dateĀ
- USB hot key switching: Switch via USB keyboard sequence
- Daisy chain – auto initialization: Connect multiple units together without complicated configurationĀ
- USB & PS/2 system/target support: Supports both PS2 and USB systems
- USB & PS/2 peripheral/user support: Supports PS/2 or USB peripherals to control a mix of PS/2 or USB systems
- 1U height: Fits perfectly into a standard rack. Does not use a large amount of valuable rack space
- Combo cables: Uses a three-in-one KVM cable that supports USB or PS/2 target devices
- Video resolution: 2048 x 1536 video resolution supports the most demanding server room applications

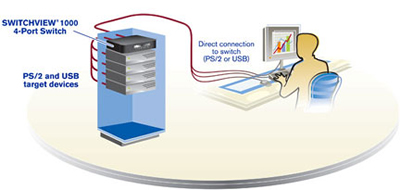

Avocent SwitchView 4 Port KVM Switch Diagram
Avocent SwitchView 4SV1000-001 Specifications:
Mechanical | Ā |
Height | 1.75 in. (4.45 cm) |
Width | 16.14 in. (41 cm) |
Depth | 6.49 in. (16.5 cm) |
Weight | 4.19 lbs. (1.9 kg) |
Environmental | Ā |
Operating Temperature | 32 to 104 F (0 to 40 C) |
Storage Temperature | -4 to 140 F (-20 to 60 C) |
Power | Ā |
Operating Voltage | 5V |
Power Frequency | 60 Hz |
Input | DC 9V |
Supported Hardware | Ā |
Computers | PC, Mac, Sun (with USB or PS/2 interface) |
Monitor | 2048 x 1536 maximum |
Peripherals | PS/2 keyboard, PS/2 mouse, USB keyboard, USB mouse, VGA monitor |
Standards | Ā |
Approved Agency | FCC, CE, C-Tick, UL, cUL |
