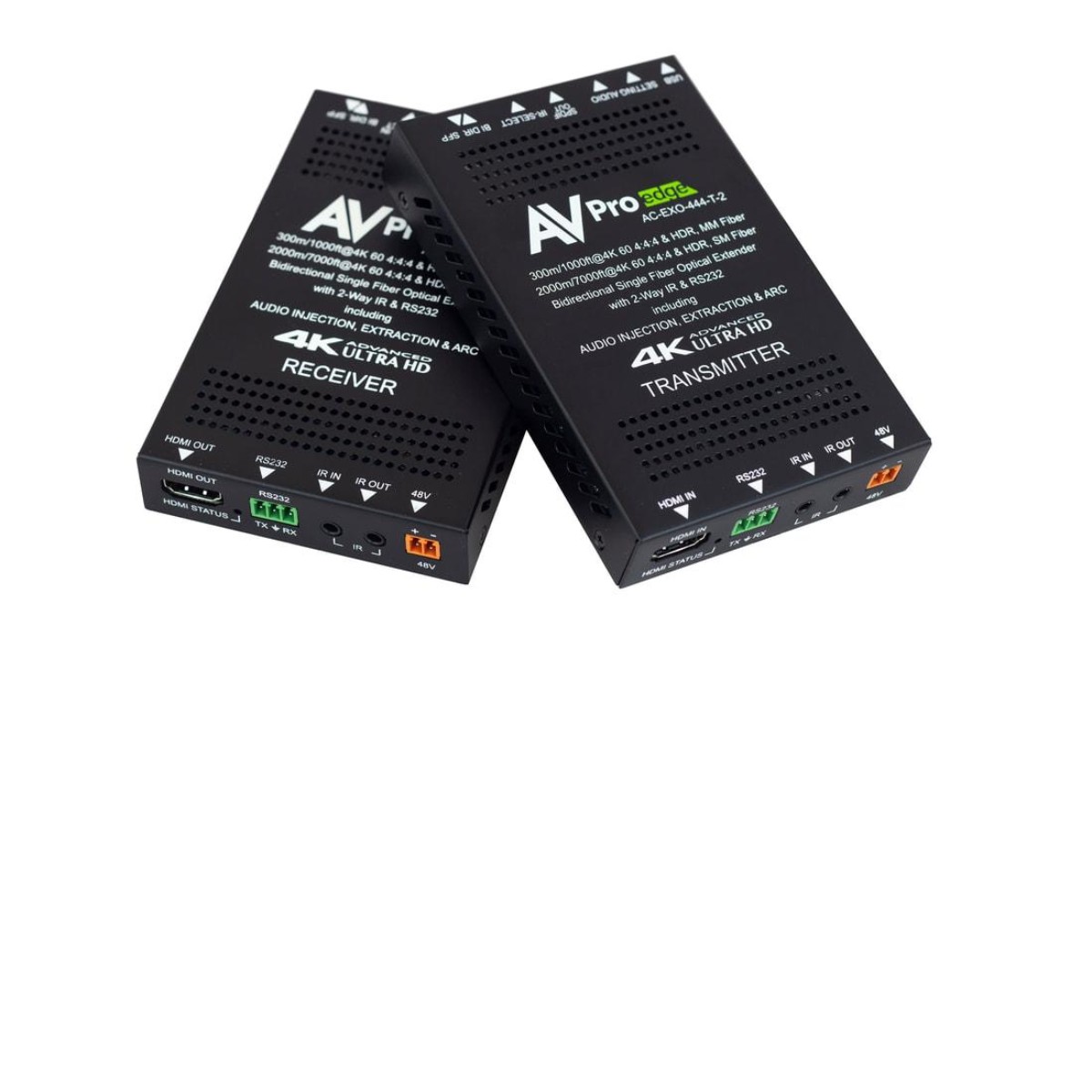

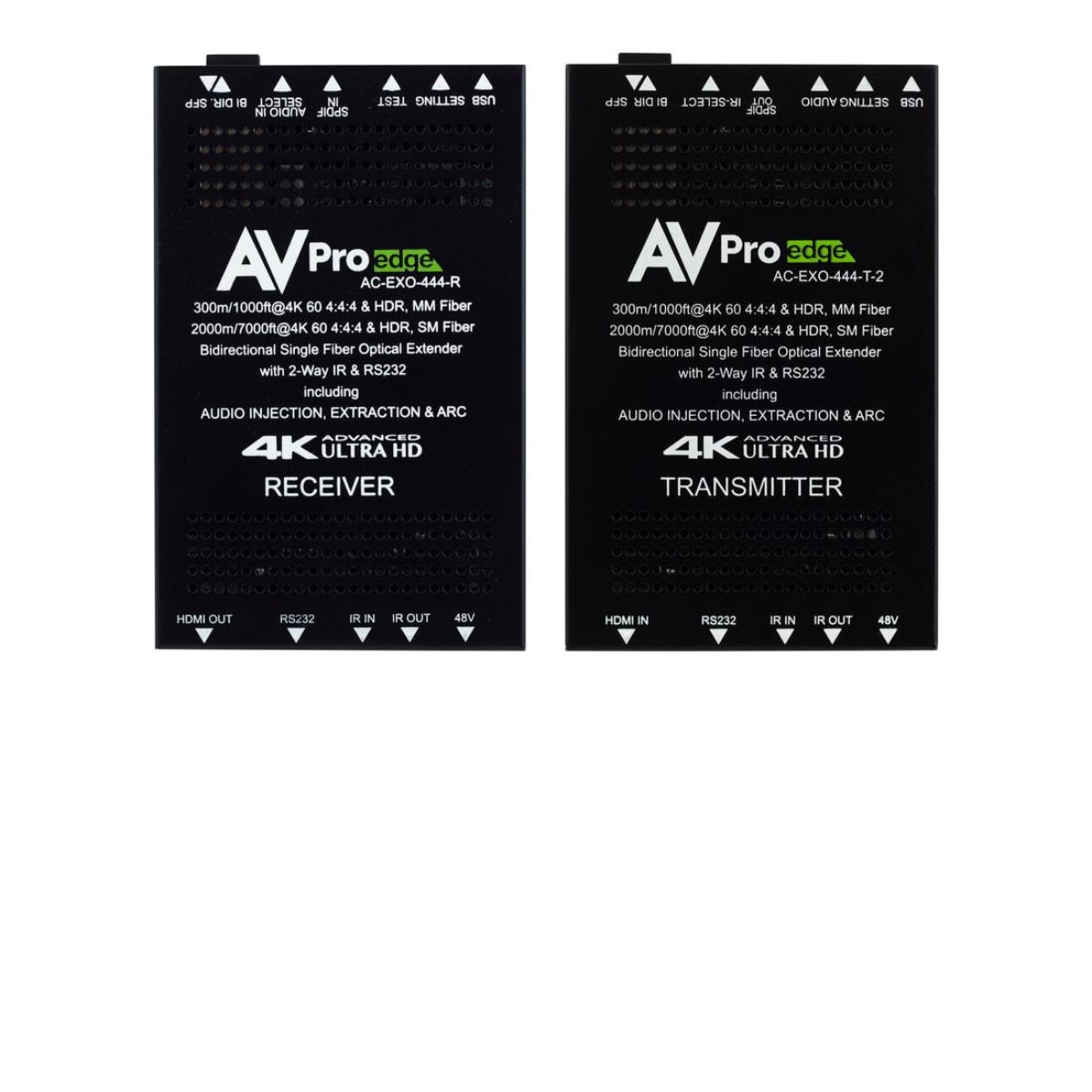

AVPro Edge AC-EXO-444-KIT

The AC-EXO-444-KIT is a HDMI extender over fiber optic cable. It allows for ultra long distance extension of HDMI signals (1.25 miles or more). All HDMI 2.0 a/b signals are supported as the bandwidth is 18Gbps.

Key benefits of using AC-EXO-444-KIT:

Extend 4K 60 4:4:4 and HDR Signals: Distance is no longer an obstacle. By using the AC-EXO-444-KIT you can go virtually any distance you require. The pre-installed SFP (Small Form-factor Pluggable transceiver) supports up to 2 km (1.25 Miles) when using a single strain of single-mode fiber or 300m (1000ft) on a single strain of readily available OM3 Multi-mode fiber. You can go even further by replacing the SFP. SFP’s are a staple in Fiber Optics today and are readily available – If you need help selecting an SFP, just contact us!

Down Scaling: The AC-EXO-444-KIT has a scaling circuit built into the transmitter. The scaler can scale 4K (and HDR) –> 1080P. A common application for this is when you have a 4K distribution and you have one or two displays that are older. You can use the extender to scale down where you need to and not have to reduce the entire system. The AC-EXO-444-KIT does the heavy lifting, eliminating the need to add additional boxes. This is an ideal choice for extension for projects requiring an 18G matrix like the AC-MX1616-AUHD.
