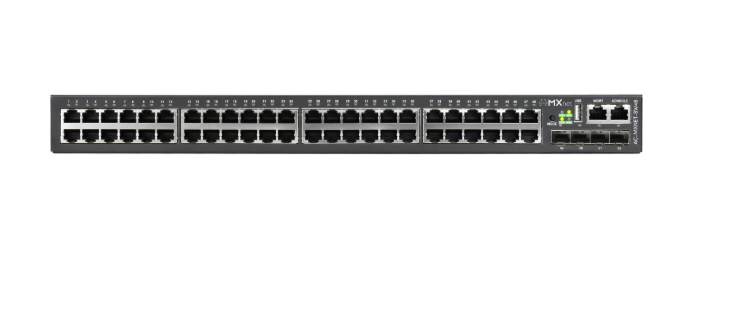

This AVPro Edge AC-MXNET-SW48 MXNet 48 Port Network Switch is the center from which all other MXNet Ecosystem platform components revolve. The AC-MXNET-SW48 (and also AC-MXNET-SW24) pack a serious A/V performance punch with the addition of AVPro Edge?s proprietary design and engineering efforts. This isn?t your father?s network switch and it?s also not just a simple re-configuration of multicast switch components. The AC-MXNET-SW48 includes a whole new AVPro developed network switch operating system (NOS) designed to reduce multicast processor loads and adds unique AVPro developed Intelligent A/V Processing (IAVP) technologies for more efficient multicast routing. The AC-MXNET-SW48 Network Switch is only one part of the MXNet Ecosystem that includes Encoders Network Switches Control Processors and other various components designed to facilitate the building of a custom A/V distribution system. MXNet?s Ecosystem includes formatting such as resolution scaling full EDID management HDR and Dolby
Switches
AVPro Edge – AC-MXNET-SW48 – AVPro Edge AC-MXNET-SW48 MXNet 48 Port Network Switch w/10-Yr
AED52,199.00
- Specifications:
- Ports
- Physical Port: 48 x 10/100/1000BaseT + 4 x 10GE (SFP+): Performance
- Switching Capacity: 176 Gbps
- Forwarding Rate: 131 MPPS
- Jumbo Frame: 10K
- Mac Address: 16K
- ARP Table: 512
-
- Routing Table: 512
- ACL Table: 512: Management Ports
- Ports: 1 x RJ45 Ethernet, 1 x Console Port, 1 x Reset Port, 1 x USB2.0 Interface: Environmental
- Relative Humidity: 10%-90% Non-Condensing, Storage 95%
- Temperature: Working 32°-122° F, Storage -40° F-158° F: Power
- Power Supply: AC: 100-240VAC, 50-60Hz
-
- Power Consumption:
