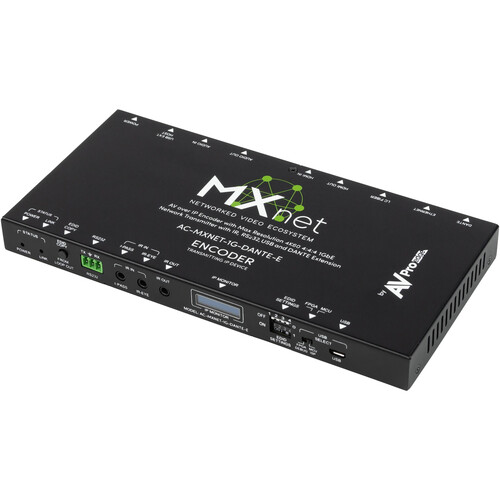

AVPro Edge MXNet 1G Dante Encoder/Transmitter

Add to Wishlist
Key Features
  • Encode HDMI Video to Fiber/IP Output
  • Dante Audio Compatible
  • Requires an L3 Multicast/MXNet Switch
  • Supports up to 4K60 4:4:4 Resolution
  • Works with AC-MXNET-1G-D Decoder
  • 1 Gb/s Maximum Data Rate
  • Analog Stereo Audio De-Embedded Output
  • PoE (Power-over-Ethernet) Support
  • RS-232 & IR Pass-Through
  • Near Zero Latency

6,999.00 د.إ

Add to Wishlist

Add the MXNet 1G Dante Encoder/Transmitter Device from AVPro Edge to your network to send IP video for video walls, digital signage, or high-resolution monitoring. This Dante audio-compatible encoder inputs up to 4K60 4:4:4 video from the MXNet switch or a multicast-capable L3 switch over Gigabit Ethernet, and outputs HDMI video up to 4K60. The transmitter encodes and transmits it with near-zero latency with a maximum 1 Gb/s data rate, outputting visually lossless video and audio.

Video/Audio Encoding
This version of AVPro Edge’s MXNet 1G Encoder/Transmitter features support for Dante audio processing. It takes advantage of a Dante Ultimo chipset for near-zero latency delivery of voice and music signals.

JPEG 2000 is the essential video encoding choice when picture quality is critical. JPEG 2000 supports progressive decoding and delivers both lossy and lossless compression within a code stream and it supports genlock, so that the frames of a video source are synced to all decoders, resulting in tear-free video walls. It also enables the handling of color-space information, 10-bit color, and interactivity in networked applications.

Data Displays
The Data Window displays the IP address and the MAC address, or you can modify the name, using MXNet Mentor to display custom names such as LG-OLED-TV, WEST-BAR-12, TW-PROJ-3, etc. You have up to 12 characters available to use for your custom name. When you install an encoder in a discreet location, you have the option to turn off all the lights on the device, including network link lights and the Data Window OLED light. This way, the end-user will never even know it’s there.
USB and KVM Support
Both RS-232 and IR signals can be directly routed from the AC-MXNET-1G-E encoder. When you route these signals through a network switch, you can specify which decoder to send these control signals. Each encoder unit has two USB ports, and you may also connect a USB hub if needed to expand the number of USB ports. Connect and route any USB signals back to the encoder host and use the MXNet Mentor software to specify to that host.
SKU: AC-MXNET-1G-DANTE-E Category: Tag:
Key Specs
Video I/O
Input
1x HDMI 2.0b Female
Output
1x HDMI 2.0b Female (Loop Output)
Audio I/O
Input
1x 1/8″ / 3.5 mm TRS
Output
1x Block 5-Pin Stereo
Input/Output
1x RJ45 Dante
Video Resolution
HDMI Input/Output (10/12-Bit 4:4:4 RGB)
3840 x 2160 at 30 fps
HDMI Input/Output (10/12-Bit 4:2:0 RGB)
3840 x 2160 at 60 fps
RJ45 Output (4:4:4/4:2:2/4:2:0)
3840 x 2160 at 30 fps
1920 x 1080p at 24/50/60 fps
1280 x 720 at 50/60 fps
Fiber Output (4:4:4/4:2:2/4:2:0)
3840 x 2160 at 30 fps
1920 x 1080p at 24/50/60 fps
1280 x 720 at 50/60 fps
Audio Format
Analog, Unspecified Digital Signal, Dante Input/Output
Broadcast System Compatibility
NTSC, PAL
IP Video
Encoding
MJP2 1280 x 720 to 3840 x 2160 at 30p
IP Audio
Encoding
Dante 44.1 to 96 Kb/s
Wireless
No
OS Compatibility
Windows
Audio I/O
Input
1x 1/8″ / 3.5 mm TRS
Output
1x Block 5-Pin Stereo
Input/Output
1x RJ45 Dante
Other I/O
Input
2x 1/8″ / 3.5 mm (IR)
1x USB-C (Service)
Output
1x 1/8″ / 3.5 mm (IR)
Input/Output
1x RJ45 (10/100/1000 Ethernet)
1x Block 3-Pin (RS-232)
1x USB-B 2.0
Expansion Slots
1x SFP Slot
Latency
16 ms
Video Resolution
HDMI Input/Output (10/12-Bit 4:4:4 RGB)
3840 x 2160 at 30 fps
HDMI Input/Output (10/12-Bit 4:2:0 RGB)
3840 x 2160 at 60 fps
RJ45 Output (4:4:4/4:2:2/4:2:0)
3840 x 2160 at 30 fps
1920 x 1080p at 24/50/60 fps
1280 x 720 at 50/60 fps
Fiber Output (4:4:4/4:2:2/4:2:0)
3840 x 2160 at 30 fps
1920 x 1080p at 24/50/60 fps
1280 x 720 at 50/60 fps
Audio Format
Analog, Unspecified Digital Signal, Dante Input/Output
Embedded Audio
Fiber/HDMI/LAN (RJ45)
Reclocking
No
Standards
HDCP Support
Yes, Version 2.2
HDR Support
No,
Surround/Immersive Audio
DTS, DTS-ES, DTS-HD High Resolution, DTS-HD Master Audio, Dolby Digital, Dolby Digital Plus
Broadcast System Compatibility
NTSC, PAL
IP Streaming
IP Video
Encoding
MJP2 1280 x 720 to 3840 x 2160 at 30p
IP Audio
Encoding
Dante 44.1 to 96 Kb/s
Transport Protocols
Dante, IGMP, TCP/IP, UDP
Hardware
Wireless
No
OS Compatibility
Windows
Display
OLED
Power
Power I/O
1x Barrel (12 VDC at 2 A) Input
PoE Support
PoE 802.3af
Power Consumption
7.4 W
Environmental
Operating Temperature
23 to 125°F / -5 to 51°C
Storage Temperature
-4 to 140°F / -20 to 60°C
Operating Humidity
5 to 90%
General
Certifications
CE, FCC, UL
Dimensions
8.5 x 4.1 x 0.8″ / 215 x 104 x 20 mm
Weight
1.3 lb / 0.59 kg
