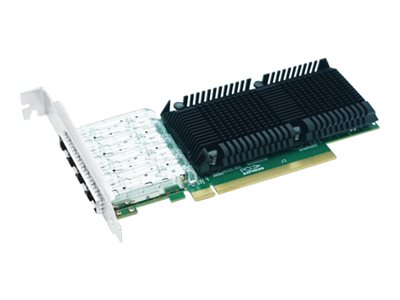

Axiom PCIE4-4SFP28-AX – network adapter – PCIe 4.0 x16 – Gigabit Ethernet / 10Gb Ethernet / 25Gb Ethernet SFP28 x 4
Axiom PCIE4-4SFP28-AX – Network adapter – PCIe 4.0 x16 – Gigabit Ethernet / 10Gb Ethernet / 25Gb Ethernet SFP28 x 4
AED4,899.00
Axiom’s 25Gb Fiber Network Adapters are the latest generation of high-performance PCIe 4.0 x16 Lane 25 Gigabit NIC Cards based on Intel chipset. Our 25Gb server adapters meet the demands of next-generation data centers by providing unmatched features for both server and network virtualization and also providing a reliable performance in a flexible LAN and SAN network. Axiom 25Gb server adapters deliver an excellent performance for 25Gb connectivity that is backwards compatible with 10GbE as well as PCIe 3.0 & 2.0, making migration from 10Gb to 25Gb even easier.
Key Features
• Quad-port 10Gb/25Gb Support
• PCI Express (PCIe) v4.0, 16.0 GT/s, x16 lanes
• SFP28 Connectivity
• PXE, iSCSI boot
• Network Virtualization
• IEEE 802.3by and 25GEthernet.org specification compliance
• Data Plane Development Kit (DPDK) support
• Excellent small packet performance for network appliances and Network Functions Virtualization (NFV)
• Low Profile and Full Height brackets are included.
| General | |
|---|---|
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express 4.0 x16 |
| PCI Specification Revision | PCIe 4.0 |
| Networking | |
|---|---|
| Ports | Gigabit Ethernet / 10Gb Ethernet / 25Gb Ethernet SFP28 x 4 |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 1000Base-LX, Ethernet 1000Base-SX, Ethernet 10GBase-LR, Ethernet 10GBase-SR, Ethernet 25GBase-SR, Ethernet 25GBase-LR, Ethernet 25GBase-CR |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet |
| Data Transfer Rate | 25 Gbps |
| Features | RDMA support, PXE support, iSCSI boot, iWARP support, Data Plane Development Kit (DPDK), Network Function Virtualization (NFV) |
| Compliant Standards | IEEE 802.3by |
| Processor / Memory | |
|---|---|
| Processor | 1 x Intel |
| Expansion / Connectivity | |
|---|---|
| Interfaces | 4 x 25Gb Ethernet – QSFP28 – female |
| Miscellaneous | |
|---|---|
| Included Accessories | Full-height bracket, half-height bracket |
| Power | |
|---|---|
| Power Consumption Operational | 22 Watt |
| Software / System Requirements | |
|---|---|
| OS Required | CentOS, VMware ESX, VMware ESXi 5.x, Windows 10, SuSE Linux Enterprise Server 12, Red Hat Enterprise Linux 7.5, Microsoft Windows Server 2019, Linux Kernel 4.x or later, Microsoft Windows Server 2016 R2, Ubuntu 20.10 or later |
| Dimensions & Weight | |
|---|---|
| Width | 0.8 in |
| Depth | 6.7 in |
| Height | 4.7 in |
| Weight | 11.99 oz |
| Environmental Parameters | |
|---|---|
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
