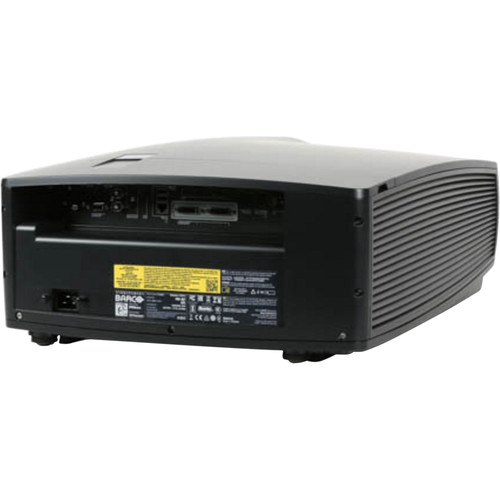

Barco F80-4K7 7000 Lumens 4K UHD DLP Laser Projector (No Lens)(Part # R90059481)

Add to Wishlist
Key Features
  • Brightness of 7000 Lumens
  • WQXGA (2560 x 1600) Native Resolution
  • 16:10 Aspect Ratio
  • 3D Capable
  • Single Step Processing
  • 24/7 Operation
  • Ethernet, USB, RS-232 Controllable

AED102,099.00

Add to Wishlist

Barco F80-4K7 Overview

The F80-4K7 7000 Lumens 4K UHD DLP Laser Projector from Barco is designed for fixed installation in a wide range of applications such as museums, board rooms, and auditoriums. Thanks to its 3D capability, it is also fit for dark theme park rides and interactive experiences. This 16:10 format projector features a brightness of up to 7000 lumens (depending on settings), and has a native resolution of 2560 x 1600.

The F80-4K7 delivers enhanced images with highly saturated colors that allow for accurate color reproduction. It also features the powerful Barco Pulse processing that allows for sharper images and less latency thanks to its Single Step Processing (SSP).

  •  24/7 operation
  • 3D capable
  • Silent operation
  • Compatible with wide array of all-glass lenses and wide lens shift ranges (sold separately)
SKU: R90059481 Category: Tags: , ,
Key Specs
Display System
1-Chip DLP
Native Resolution
2716 x 1600
Maximum Brightness
7000 Lumens (Center)
6600 Lumens (ANSI)
7500 Lumens (ISO)
HDR Support
Yes, HDR10
Inputs/Outputs
1x BNC (12G-SDI) Video Input
2x DisplayPort 1.2 Video Input
2x DVI-D Video Input
1x RJ45 (HDBaseT) Control
1x HDMI 2.0 Audio, Video Input
1x RJ45 (Ethernet) LAN
1x 4-Pin DIN (DMX) Control Input
1x 4-Pin DIN (DMX) Control Output
1x DE-9/DB-9 (RS-232) Remote
2x USB-A 2.0 Data
Light Source
Laser Phosphor
Image Display
Display System
1-Chip DLP
Native Resolution
2716 x 1600
Supported Resolutions
Maximum: 3840 x 2400
Minimum: 2716 x 1600
Maximum Brightness
7000 Lumens (Center)
6600 Lumens (ANSI)
7500 Lumens (ISO)
Uniformity
>90%
Aspect Ratio
Native: 16:10
Contrast Ratio
1200:1
Dynamic Contrast Ratio
10,000:1
DLP Link 3D
Yes
Lens
Includes Lens
No
Features
HDR Support
Yes, HDR10
Multi-Input Support (PIP/PBP)
No
Built-In Speaker
No
Projection Tilt Option
No
Input/Output Connectors
Inputs/Outputs
1x BNC (12G-SDI) Video Input
2x DisplayPort 1.2 Video Input
2x DVI-D Video Input
1x RJ45 (HDBaseT) Control
1x HDMI 2.0 Audio, Video Input
1x RJ45 (Ethernet) LAN
1x 4-Pin DIN (DMX) Control Input
1x 4-Pin DIN (DMX) Control Output
1x DE-9/DB-9 (RS-232) Remote
2x USB-A 2.0 Data
HDCP Support
Yes, Version 2.2
Hardware
Mobile App Compatible
No
Wireless LAN / Wi-Fi
No
Bluetooth
No
General
Light Source
Laser Phosphor
Expected Lamp Life
Medium Brightness: 40,000 Hours
Fan Noise
Medium Brightness: 35 dB
Security
No
Input Power
100 to 240 VAC, 50 / 60 Hz
Power Consumption
Full Brightness: 850 W
Medium Brightness: 700 W
Standby Mode (Lamp Off): < 0.5 W
Operating Temperature
42 to 72°F / 10 to 40°C
Storage Temperature
-4 to 140°F / -20 to 60°C
Operating Humidity
20 to 80%
Storage Humidity
20 to 90%
Dimensions (W x H x D)
18.9 x 8.9 x 26.7″ / 48.0 x 22.6 x 67.8 cm
Weight
56.2 lb / 25.49 kg
