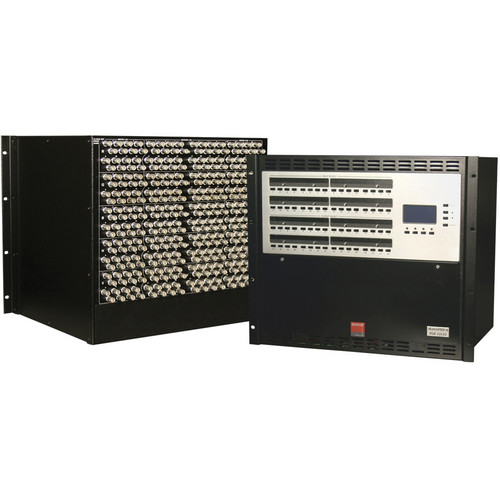

Barco MatrixPRO-II 16×16 Switcher with 3G SDI(Part # R9004660)

Add to Wishlist
Key Features
  • 16×16 Wideband Switcher with 3G SDI
  • Transmits 1080p @ 60Hz
  • 600MHz at -3dB Bandwidth
  • +/-1.0dB to 300MHz Flatness
  • Switches / Distributes without Artifacts
  • Genlock Input
  • Selectable RGB Delay Mode
  • I/O Grouping and Split Mode Switching
  • Panel / RS232 / LAN Controls
  • Fully Integrates with Encore / ScreenPRO

37,599.00 د.إ

Add to Wishlist

Barco MatrixPRO-II Overview

The Barco MatrixPRO-II 16×16 Switcher with 3G SDI combines a high 600MHz bandwidth with a flat +/-1.0dB to 300MHz frequency to deliver image switching and signal distribution without any artifacts.

A genlock input synchronizes all switching with the house sync. A user-selectable RGB delay mode locks down-stream equipment to a new signal before anything is visible on the screen. And presets are available to be stored and allow easy system reconfiguration. I/O grouping and split-mode switching features divide the matrix into smaller sub-switchers and let each color channel switch independently.

Control can be by front panel buttons, by RS232, or via Ethernet connections. The switcher also fully integrates with Barco’s Encore and ScreenPRO-II presentation systems and can be controlled through them.

16×16 Wideband Matrix Switcher
  • Delivers switching and distribution without any artifacts
  • A genlock input synchronizes all switching with the house sync
  • Selectable RGB delay locks down-stream equipment to a new signal
  • Presets are available to be stored and facilitate easy system reconfiguration
  • I/O grouping and split-mode create sub-switchers and let each color channel switch independently
SKU: R9004660 Category: Tag:
Supported Formats
DVB-ASI, SMPTE 259M, SMPTE 292M, SMPTE 424M; 270M bps – 2.97Gbps; 2K, 2048×1556/23.98 and 24
Inputs
Standard
SMPTE 259M / SMPTE 292M / SMPTE 424M
Data Rate
270Mbps – 1.485Gbps / 2.97Gbps
Connector
75 ohm BNC female
Impedance
75 ohm nominal
Return Loss
> 15dB (5MHz – 1.485GHz); > 10dB (1.5 – 3GHz)
Cable Equalization
Automatic up to 230′ (70m) @ 2.97Gbps, typical Belden 1694A
Automatic up to 328′ (100m) @ 1.485Gbps, typical Belden 1694A
Automatic up to 984′ (300m) @ 270Mbps, typical Belden 8281
Outputs
Connector
75 ohm BNC female
Impedance
75 ohm nominal
Return Loss
> 15dB (5MHz – 1.485GHz); > 10dB (1.5 – 3GHz)
Signal Level
800mVp-p ±10%
Rise & Fall
– 20 – 80%
– SD limit: 0.4 – 1.5ns, < 0.5ns rise/fall variation
– HD limit: < 270ps, < 100ps rise/fall variation
– 3G-HD limit: < 135ps, < 50ps rise/fall variation
Amplitude Overshoot
< 10%
Signal Polarity
Non-inverting electrical with respect to inputs
Power & Other Parameters
Power
19W
Signal Speed
Timing jitter: SD: < 0.2 UI; 3G-HD/HD: < 1UI
Alignment jitter: SD: < 0.2UI; 3G-HD/HD: < 0.2UI
Safety Regulations
Compliant with CE EN55103-1 and 2
Control
Serial port: RS-232, DB9 connector female
Ethernet port: 10/100BaseT Ethernet bus, 1x RJ45 connector
Rack Mount
1RU
Dimensions
1.7 x 19 x 2″ (4.4 x 48.3 x 5 cm)
Weight
3.1 lbs (1.4 kg)
