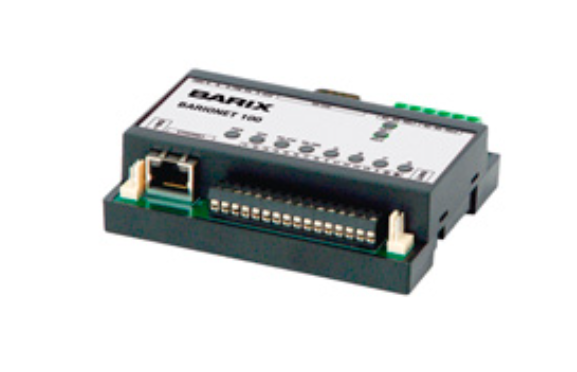

Barix Technology – 2003.90 – Barionet 100 IP Automation Controller & Programmable I/O Device Server

Add to Wishlist

Features:

  • IP Automation Controller
  • 4 digital outputs
  • 4 analog or digital inputs
  • 4 digital inputs
  • 2 relay outputs
  • RS-422/485 serial interface
  • Wiegand reader Interface
  • 10/100 Mb auto-sensing Ethernet port
  • Integrated web server
  • RS-232 serial interface

AED2,099.00

Add to Wishlist

The Barionet from Barix is family of programmable network-enabled automation controllers for interfacing a wide variety of devices and systems to IP-based networks in home and industrial automation applications. With the Barix Barionet 100, most devices can be network enabled for monitoring and control via a web browser as well as other standards-based automation systems, such as SNMP and Modbus.

The Barix Barionet 100 provides a variety of standard hardware and software interfaces as well as general-purpose inputs and outputs for control and monitoring applications.

Two Barionet models are available, the Barix Barionet 100 (the original Barionet) and the new Barionet 50. The two models differ primarily in the number of inputs and outputs provided.

Universal, programmable I/O device server with web server, Modbus/TCP and SNMP support. Serial ports, analog and digital I/O, Relays and Dallas 1-wire support. UL listed.

SKU: 2003.90 Category: Tag:
  • Specifications:
  • I/O Interfaces
  • 2 relay outputs (240 VAC 5 A)
  • 4 digital inputs (0..12 V ), configurable pullups
  • 4 universal inputs (analog 0..5/10 V or
  • digital 0..12 V ) with configurable pullups
  • 4 digital outputs (open collector, 24 V 0.1 A)
  • 2 Barix extension bus connectors with Dallas
  • 1-Wire capability:Serial Interfaces
  • 1 RS-232 * (DSub-9 male, RX/TX only)
  • 1 RS-422/485 * (2 /4-wire)
  • * 600..19’200 Baud, 7/8 bit, Odd/Even/No par:Network Interface
  • RJ45 10/100 Mbit Ethernet (Autodetect)
  • TCP/IP, UDP, ICMP, DHCP, AutoIP, IPzatorT,
  • XML, SOAP, Modbus/TCP, SNMP, CGI, web
  • server for control, status and configuration:Misc
  • 8+2 LED status indicators:Power input
  • 12..24 VDC (± 20%):Case
  • high quality plastic, 160 g, , DIN-rail mount.
  • 4.13″ x 3.34″ x 1.1″, 105 mm x 85 mm x 31 mm:MTBF
  • Min. 850 000h acc. to MIL217F at 25° C
  • ambient temperature
  • User Interface
  • browser based (integrated webserver),
  • serial port or ethernet control API
