04 3550600 052 7036860

Black Box 15 Amp Horizontal PDU 14 Outlet 5-20R

Add to Wishlist
  • Amp meter measures AC current flowing through the outlets and shows current draw on a digital LCD readout.
  • Alarm sounds if overcurrent is detected.
  • Features 15-amp overcurrent protection.
  • Fits in only 1U of rack space.
  • Has 6 front and 8 rear outlets.
  • NEMA 5-15R rated outlets on both front and back for extra convenience.
  • The 6-foot (1.8-m) power cord is NEMA rated.

AED1,199.00

Add to Wishlist

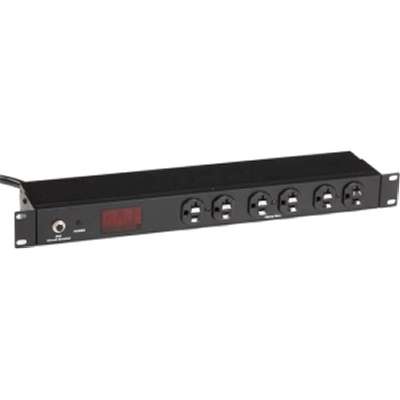

The metered PDU LCD display shows the current power draw in amps. The metered PDU only has one function button, MUTE, located next to the display. The metered PDU’s alarm sounds when the current draw reaches 90% of capacity (13.5 amps). The alarm can be turned off by pressing the MUTE button. When the current draw excedes 90% the maximum current rating, the alarm cannot be muted, and the PDU alarms until the current draw is reduced.

SKU: PDUMH14-S15-120V Category: Tag:
Category Attribute Value
General Information Product Name 15 Amp Horizontal PDU 14 Outlet 5-20R
Manufacturer Part Number PDUMH14-S15-120V
Product Series Metered
Product Condition New
Product Type PDU
Technical Information Plug / Connector Type NEMA 5-15P
Receptacle Type NEMA 5-15R
Receptacle Detail 14 x NEMA 5-15R
Protection Type Overcurrent Protection
Power Description Input Voltage 120 V AC
Input Current 15 A
Physical Characteristics Mount Type Rack-mountable
Rack Height 1U
Cord Length 6 ft
Height 1.8″
Width 19″
Depth 3.5″

Based on 0 reviews

0.0 overall
0
0
0
0
0

Be the first to review “Black Box 15 Amp Horizontal PDU 14 Outlet 5-20R”

There are no reviews yet.
