Power distribution unit
Black Box 15 Amp Vertical PDU 24 Outlet Metered 5-15R
- Provides 24 outlets across 60 vertical inches.
- LCD display shows the current power draw in amps.
- An alarm sounds when current draw reaches 80% of capacity.
- The alarm can be turned off by pressing a mute button until the current draw reaches 90%, at which point the alarm can only be disabled by reducing the current draw.

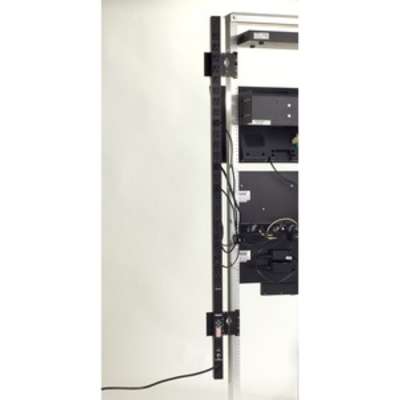

- Mounts vertically in any standard cabinet or rack.
AED1,599.00

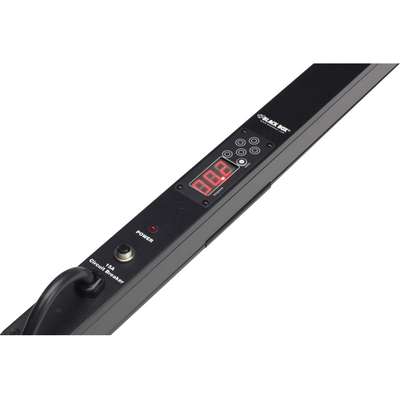

The metered PDU LCD display shows the current power draw in amps. The metered PDU only has one function button, MUTE, located next to the display. The metered PDU’s alarm sounds when the current draw reaches 80% of capacity. The alarm can be turned off by pressing the MUTE button. When the current draw exceeds 90% of the maximum current rating, the alarm cannot be muted, and the PDU alarms until the current draw is reduced.
| Category | Attribute | Value |
|---|
| General Information | Product Name | 15 Amp Vertical PDU 24 Outlet Metered 5-15R |
| Manufacturer Part Number | PDUMV24-S15-120V |
| Product Condition | Refurbished |
| Packaged Quantity | 1 |
| Product Type | PDU |
| Technical Information | PDU Type | Metered |
| Plug / Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 24 x NEMA 5-15R |
| Protection Type | Circuit Protection |
| Power Description | Input Voltage | 120 V AC |
| Input Current | 15 A |
| Physical Characteristics | Mounting Orientation | Vertical |
| Mount Type | Cabinet-mountable, Rack-mountable |
| Height | 3″ |
| Width | 4.8″ |
| Depth | 65″ |
| Length | 60″ |
Based on 0 reviews
Be the first to review “Black Box 15 Amp Vertical PDU 24 Outlet Metered 5-15R”
