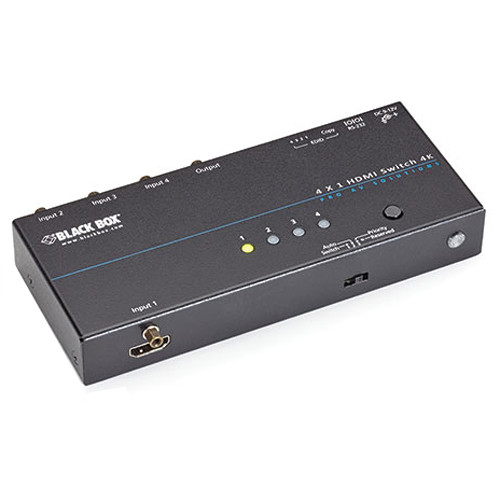

Black Box 4K HDMI Matrix Switch (4 x 1)


999.00 د.إ

ThisĀ 4K HDMI Matrix SwitchĀ fromĀ Black BoxĀ routes 4 HDMI sources to 1 HDMI display. Multi-controlled functions include front-panel buttons with LED indicators, IR remote, and serial control, allowing you to operate the system easily. The 4K HDMI switch can operate in auto mode and priority mode. The system can either automatically select the latest video source for display in auto mode, or automatically select a video source following priority order in priority mode. It also offers EDID copy function to ensure the optimal resolution for your application. The built-in serial interface allows users to control the HDMI Matrix through a PC, serial controller devices, or home theater system, integrating the whole A/V environment.

Supports 4 displays as input and 1 HDMI display as output
Supports resolutions up to full HD 1080p/4K
Non-volatile memory stores all settings in case of blackout
Auto-sensing function automatically selects active input source or prioritized source
Control the switch via the front-panel push button or IR remote controller (included)
Individually turn ON/OFF the output port
Optimizes signals by choosing the best output setting from the available alternatives
Compatible with HDTV and 3D HDTV
Complies with HDCP standard
SKU: VSW-HDMI4X1-4K Category: Tag:
Frequency Range
25 to 297 MHz
Resolution
Maximum 4K @ 30 Hz
Modes
Switch / Autosensing / Priority / Matrix
MTBF
50,000 hours
EDID
Configuration:
Video: Auto/inventory
Audio: Auto/inventory
User Control
Port selection switch button, EDID copy button, EDID switch for EDID selection, EGO setting switch for auto functions
HDMI
Port Type: Female
4 x Input
1 x Output
Serial Port
1 x RJ-12 female
Power
100 to 240 VAC, 50 to 60 Hz, 45 W
9 to 12 VDC (power adapter included)
Indicators
4 x LEDs for input status
Approvals
FCC Part 15, CE, UL, RoHS, CSA, TUV
Operating Temperature
32 to 104°F (0 to 40°C)
Storage Temperature
-4 to 140° F (-20 to 60° C)
Relative Humidity
80%
Altitude
10,000′ (3048 m)
Dimensions
0.8 x 6.1 x 2.6″ (2.0 x 15.6 x 6.5 cm)
Weight
1.55 lb (0.7 kg)
Packaging Info
Package Weight
2 lb
Box Dimensions (LxWxH)
9.3 x 6.2 x 2.7″
