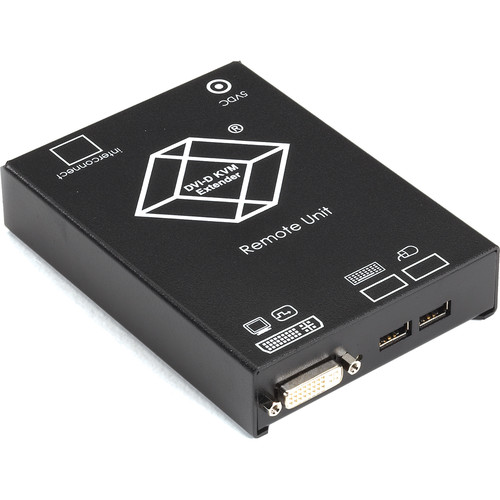

Black Box ACS4001A-R2-R ServSwitch KVM (DVI/USB) over CATx Extender Remote Unit


AED4,099.90

Black Box ACS4001A-R2-RĀ Overview

TheĀ ACS4001A-R2-R ServSwitch KVM (DVI/USB) over CATx Extender Remote UnitĀ byĀ Black BoxĀ is a standalone unit designed to receive KVM signals from a ACS4001A-R2-T local transmitter unit (sold separately) located at a distance of up to 400′, over a CATx cable (CAT5 or higher) at a maximum resolution of 1920 x 1200. The unit provides outputs for connecting a DVI-D monitor, a USB keyboard, and a USB mouse. For dual-access configuration of the transmitter-receiver pair, connect a DVI-D monitor to the local output of the ACS4001A-R2-T local unit, and a USB keyboard & a USB mouse directly to the CPU; use your computer at either location. This receiver is especially versatile when used in conjunction with ServSwitch DKM DVI-D KVM switches.

Receives KVM signals from a ACS4001A-R2-T local unit (sold separately) located up to 400′ away
Connect a DVI-D monitor, a USB keyboard, and a USB mouse to the remote unit
Maximum resolution up to 1920 x 1200
The transmitter-receiver pair can be configured as a dual-access extender
Use in conjunction with ServSwitch DKM DVI-D KVM switches for added versatility

Black Box ACS4001A-R2-RĀ Specs

Compatibility Local Transmitter Unit: ACS4001A-R2-T
ServSwitch DKM DVI-D KVM Switches: ACX0808, ACX0816, ACX0832, ACX1616, ACX1632
Resolution 1920 x 1200 @ 60 Hz maximum
Transmission Range 400′ (122 m) using 24 AWG
200′ (61 m) using 26 or 28 AWG
Connectors 1 x DVI-D female, video output
2 x USB type A female, keyboard & mouse
1 x RJ-45, interconnect
1 x 5 VDC power plug
Power 90 – 240 VAC, 47 – 63 Hz, autosensing, external, with IEC 320 connector
Dimensions 1.1 x 4.0 x 5.6″ (2.8 x 10.2 x 14.2 cm)
Weight 1.3 lb (0.6 kg)
Packaging Info
Package Weight 1.6 lb
Box Dimensions (LxWxH) 10.6 x 7.8 x 1.8″
