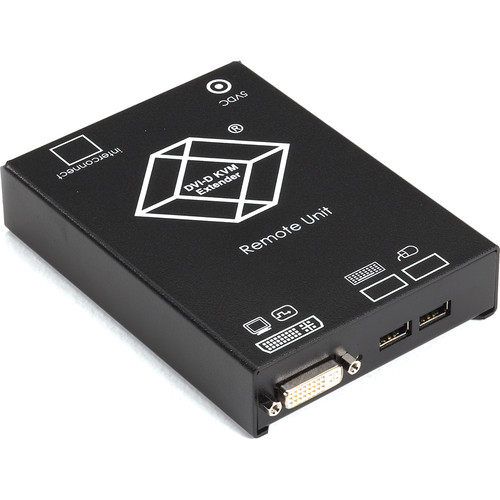

Black Box ACS4001A-R2 ServSwitch KVM (DVI/USB) over CATx Dual-Access Extender Kit

Add to Wishlist

AED8,099.99

Add to Wishlist

Black Box ACS4001A-R2 Overview

The ACS4001A-R2 ServSwitch KVM (DVI/USB) over CATx Dual-Access Extender Kit by Black Box, comprised of a local transmitter unit and a remote receiver unit, enables you to access your CPU from either a local or a remote USB keyboard, DVI monitor, and USB mouse. CATx cable (either CAT5, CAT5e, or CAT6) is used to extend the distance from your PC up to 400′. With this extender, you get video resolution of up to 1920 x 1200. The local unit is connected directly to the CPU and the remote KVM console with DVI-D monitor is attached to the remote unit. A local KVM console with DVI-D monitor may be attached to the local unit. This method of dual access enables you to use your computer at either location.

Extends USB keyboard, USB mouse, and DVI-D video signals up to 400′ over CAT5/5e/6 cable
Resolution up to 1920 x 1200
Dual access feature enables you to use your computer at either location
SKU: ACS4001A-R2 Category: Tag:

Black Box ACS4001A-R2 Specs

Color Depth 18/21 bit
Transmission Range 24 AWG: 400′ (121.9 m)
26 or 28 AWG: 200′ (60.9 m)
Resolution 1920 x 1200 at 60 Hz
Operating Temperature 41 to 113°F (5 to 45°C)
Humidity Tolerance Up to 80% noncondensing
Certification CE
Connectors Local Unit:
1 x USB type B female, keyboard and mouse
1 x DVI-D female, monitor input
1 x DVI-D female, monitor output
1 x RJ-45 interconnect
1 x 5 VDC power plug
Remote Unit:
1 x USB type A female, keyboard
1 x USB type A female, mouse
1 x DVI-D female, monitor output
1 x RJ-45 interconnect
1 x 5 VDC power plug
Power 90 – 240 VAC, 47 – 63 Hz, autosensing, external with IEC 320 connector and cord
Dimensions Each Unit:
1.1 x 4 x 5.6″ (2.8 x 10.2 x 14.2 cm)
Weight Each Unit:
1.3 lb (0.6 kg)
Packaging Info
Package Weight 3.687 lb
Box Dimensions (LxWxH) 10.7 x 8.2 x 4.5″
