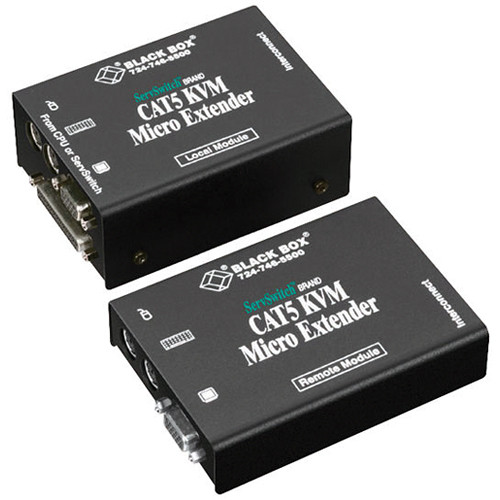

Black Box ACU3009A ServSwitch Micro KVM (VGA/PS/2) over CAT5 Dual-Access Extender Kit


AED2,999.90

Black Box ACU3009AĀ Overview

TheĀ ACU3009A ServSwitch Micro KVM (VGA/PS/2) over CAT5 Dual-Access Extender KitĀ byĀ Black Box, comprised of a local transmitter unit and a remote receiver unit, enables you to access your CPU from either a local or a remote PS/2 keyboard, VGA monitor, and PS/2 mouse. A CAT5 cable is used to extend the distance from your PC up to 160′. The maximum resolution supported is 1280 x 1024. All KVM signals are fully buffered to ensure consistent remote operation of your PC.

The local unit is connected directly to a PC’s CPU using the included three-to-one cable and the remote KVM console is attached to the remote unit. The local KVM console, which is attached to the local unit, will contend with the remote station for CPU control. One station will be granted control while the user at that station is typing at the keyboard or moving the mouse. Once this activity stops for two seconds, the user at the other station can take take control.

The remote unit draws its power from the included external supply, and the local unit is powered by the connection from the CPU’s keyboard port. A single DIP switch is set to tell the extender whether to equalize for CAT5 cable shorter or longer than 82′. Because the local unit always emulates a directly attached keyboard and mouse, you can unplug and replug any keyboard or mouse attached to the extender at any time without disrupting the booting or operation of your CPU.

Dual-access model enables you to operate your PC either from the local or remote user station
Full-featured KVM extension with a pair of pocket-sized boxes
Extends KVM signals up to 160′
Supports resolutions up to 1280 x 1024
Adjustable video equalization compensates for cable losses
Fully buffered signals for transparent remote operation
Supports IntelliMouse
SKU: ACU3009A Category:

Black Box ACU3009AĀ Specs

Clamping Voltage 15 VDC
Compatibility Video: VGA, SVGA, XGA, XGA-2, or RGsB (sync on green)
Keyboard: IBM PC/AT or PS/2 compatible (PC/AT types require connector adapter)
Mouse: IBM PS/2 compatible two-button, Microsoft IntelliMouse, or Logitech PS/2 compatible 3-button
Transmission Range 160′ (48.8 m), maximum
Resolution 1280 x 1024 at 150′ (45.7 m)
Video Characteristics Video I/O Signal Levels: 0.7 V pp
Video Compensation: For short or long distance (user-switchable)
Synchronization: H/V or composite, TTL signal levels; sync polarity is preserved
Video Coupling: DC
Connectors Local Unit
1 x 25 D-sub pin female, video, keyboard & mouse
1 x RJ-45, interconnect
1 x 15-pin D-sub female, video output to local monitor
2 x 6-pin mini DIN female, input from local keyboard & mouse
Remote Unit
1 x RJ-45, interconnect
1 x 15-pin D-sub female output, video
2 x 6-pin mini DIN female, keyboard and mouse
1 x barrel power plug
User Controls Keyboard commands
Bottom-mounted 2-position DIP switch for video distance (cable length) and keyboard command recognition, on remote unit
Indicators and Controls 1 x LED for power and link integrity (on the local unit)
Temperature Tolerance 32 to 104°F (0 to 40°C)
Humidity Tolerance 5 – 90% non-condensing
Power Local Unit: From the PC
Remote Unit: 9 VDC from external power supply
External Power Supply (AC Adapter) 100 – 240 VAC, 47 – 63 Hz
Dimensions Local Unit: 1.7 x 4.3 x 3.1″ (4.3 x 10.9 x 7.9 cm)
Remote Unit: 1.0 x 4.3 x 3.1″ (2.5 x 10.9 x 7.9 cm)
Weight Local Unit: 13.5 oz (382 g)
Remote Unit: 8.3 oz (235 g)
Packaging Info
Package Weight 2.75 lb
Box Dimensions (LxWxH) 9.3 x 6.1 x 3.7″
