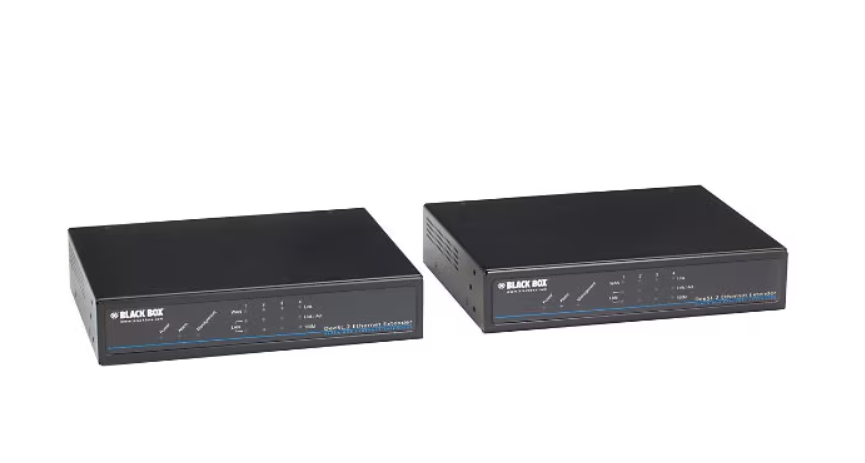

Black Box Ethernet Extender Kit G-SHDSL 4-Wire – Kit – network extender – 10Mb LAN, 100Mb LAN – TAA Compliant


Quick tech specs

  • SHDSL 4-Wire
  • network extender
  • 10Base-T, 100Base-TX
  • up to 5.2 miles
  • Kit
  • 100Mb LAN
  • 4 ports
  • TAA Compliant (pack of 2)

8,999.00 د.إ

Know your gear

Double the speed of your Ethernet extension link using 4 wires. This kit includes a pair of auto-rate Ethernet extenders using a standard 2-wire connection which simplifies your life and provides cost-effective network extension by enabling you to make the most of your pre-existing twisted-pair infrastructure. You’ll be able to connect remote LANs across distances and at speeds previously unheard of. An auto-rate feature ensures that you achieve the highest possible speed on each connection. It’s easy to use too. Plug-and-play means that you’ll be up and running in seconds and the built-in MDI-X works with either straight-through or crossover cables. The pair autosenses the data rate up to 22.8 Mbps at a distance of 4750 feet (1450 m) to provide reliable broadband connectivity with full-duplex symmetric rates with lower speeds at longer distances of up to about 5.2 miles (8.3 km). LB524A-KIT Distance Chart 4-Wire Standard Distance on 24 AWG (0.5 mm) Line RateMileskm 386 6.4 10.4 2 Mbps 5.6 9.0 8.2 Mbps 3.0 4.9 16.4 Mbps 1.8 3.0 30.6 Mbps 0.7 1.2 Ethernet Extender Kit 4 Port 4 Wire Managed. Extends 4 ports 10/100Mbps Ethernet RJ45 over copper or CATx line interface RJ45. The kit includes 2 extenders for near-end (local) far-end (remote) deployment. Typical applications include Enterprise LAN extension campus LAN expansion. This kit includes a pair of auto-rate Ethernet extenders using a standard 4-wire connection which simplifies your life and provides cost-effective network extension by enabling you to make the most of your pre-existing twisted-pair infrastructure. These 4 port 10BASE-T/100BASE-TX Ethernet Extenders use G-SHDSL technology to provide an easy inexpensive way to extend the reach of your Ethernet network over ordinary voice-grade copper wire. Devices include external 90-240VAC power supplies. Management interfaces include a web based GUI SNMP and a console port.
SKU: LB524A-KIT-R2 Category: Tag:
Category Details
Overview
Brand Black Box
Product Line Black Box Ethernet Extender Kit
Model G-SHDSL 4-Wire
Manufacturer Black Box
Network & Communication
Cable Type Ethernet 100Base-TX, Ethernet 10Base-T
Compliant Standards IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q
Connectivity Technology Wired
Data Link Protocols Ethernet, Fast Ethernet
Data Transfer Rate 22.8 MBps
Features Auto-sensing per device, Class of Service (CoS), DiffServ Code Point (DSCP) support, Full duplex mode, Half duplex mode, Management Information Base (MIB), MDI/MDI-X switch, Quality of Service (QoS), Strict Priority Queuing (SPQ), Tagged VLAN, VLAN support, Weighted Round Robin (WRR) queuing
Form Factor External
MAC Address Table Size 2K entries
Max Transfer Distance 5.2 miles
Ports 4
Product Type Network extender
Remote Management CLI, HTTP, SNMP 1, SNMP 2, TFTP
Status Indicators Alarm, Diagnostic, Link/activity, Port transmission speed, Power, WAN
Connectivity
Interface Provided 1 x console – RJ-45 female, 1 x management – RJ-45 female, 1 x network – RJ-45 female, 4 x Ethernet 10Base-T/100Base-TX – RJ-45 female
Power
Frequency 50 – 60 hertz
Technical Information
Line Coding Format TC-PAM
Max Operating Temperature 122 degrees Fahrenheit
Min Operating Temperature 32 degrees Fahrenheit
Product Information
Device Type External power adapter
Kit Kit
Packaged Quantity 2
Dimensions & Weight
Height 1.9 inch
Weight 2.87 lbs
Width 7.7 inch
Depth 6.6 inch
Physical Characteristics
Color Category Black
Certifications & Listings
Compliant Standards Directive 73/23/EEC, Directive 89/336/EEC, EMC, FCC Part 15 A, Plug and Play, RoHS
TAA Compliant Yes
