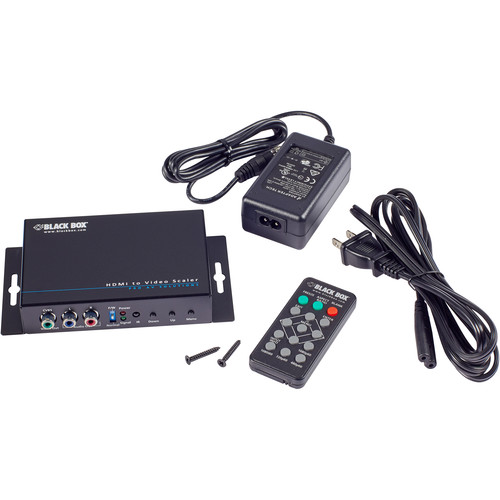

Black Box HDMI to Video Signal Scaler and Converter

Add to Wishlist

AED1,299.00

Add to Wishlist

The HDMI to Video Signal Scaler and Converter from Black Box converts digital HDMI to component/CVBS signal with either digital audio (S/PDIF) or analog stereo audio. This converter supports scaling, which allows you to change resolutions to increase quality or improve compatibility. With this module, HDMI based devices such as Blu-ray disc players, gaming consoles, DVD players, camcorders, or set-top boxes can connect to your PC LCD monitors and speakers. The device also enables users to connect full digital video and audio to a CVBS monitor and S/PDIF-equipped audio receiver and amplifier, for maximum compatibility with home theater devices.

Can be controlled via an IR remote control
Can be controlled via mini-USB
OSD control interface
Maximum input pixel rate of 165 MHz
Supports de-interlacing
Supports noise reduction and video enhancement features
Over/under scanning adjustable
Supports video H/V mirroring
Supports active video area adjustment
USB firmware upgradable for expanding compatibility
Wall mount housing design for easy installation
SKU: AVSC-HDMI-VIDEO Category: Tag:
Audio Support
Stereo PCM (48 kHz only)
Maximum Resolution
1080p, 1920 x 1200
Color
Maximum: 4:2:2
Frequency Bandwidth
Output Video: 165 MHz
Input Video: 74.25 MHz
User Controls
1 x DIP switch for firmware update
3 x Push buttons (Down, Up, Menu/Enter)
Connectors
Input:
1 x HDMI type A (19-pin female)

Output:
2 x 3.5mm stereo (L, R)
3 x RCA (YPbPr)
1 x RCA (CVBS)
1 x RCA (S/PDIF)

Firmware Update and Control:
1 x Mini USB

Power:
1 x Interlocking power jack
Indicators
1 x Red LED (power)
1 x Green LED (video signal)
Enclosure
Metal wall mounting case with screws
ESD Protection
Human Body Model:
±19 kV (air-gap discharge)
±12 kV (contact discharge)
Core Chipset: ±2 kV
Firmware Updates
Via USB Port
IR Sensor
Receives IR commands from the IR remote
Power
Supply: 5 VDC, 2 A
Consumption: 5 W (maximum)
Operating Temperature & Humidity
32 to 104° F (0 to 40° C)
Relative Humidity: 20-90%, non-condensing
Storage Temperature
-4 to +140° F (-20 to +60° C)
Dimensions
6.9 x 5.3 x 5″ (17.5 x 13.5 x 12.7 cm)
Weight
9.5 oz (270 g)
Packaging Info
Package Weight
2.1 lb
Box Dimensions (LxWxH)
8.1 x 5.6 x 3″
