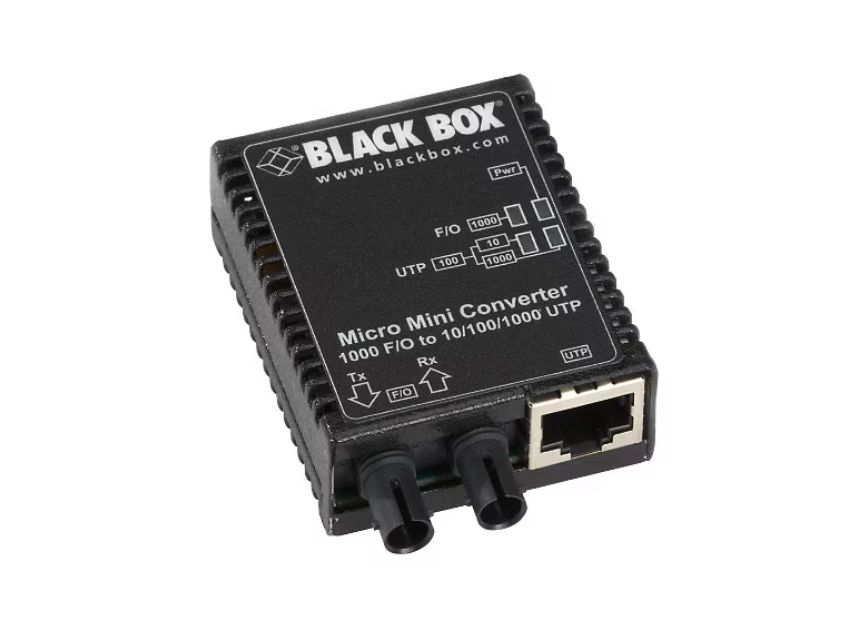

Black Box Micro Mini Media Converter – fiber media converter – 10Mb LAN, 100Mb LAN, GigE – TAA Compliant


Quick tech specs

  • Fiber media converter
  • 10Base-T, 1000Base-LX, 100Base-TX, 1000Base-T
  • up to 7.5 miles
  • TAA Compliant
  • GigE
  • RJ-45 / ST single-mode
  • 1310 nm

3,299.00 د.إ

Know your gear

Bring fiber to the desktop and other tight spaces. Ultra compact weighing only 2.5 ounces. Tucks unobtrusively behind a PC. USB-powered for portability or use it with the included power adapter. Plug-and-play capability with autonegotiation. Supports distances of up to 12 kilometers (7.5 mi.) over single-mode fiber. UTP port supports 10/100/1000BASE-T. Supports Jumbo Ethernet frames up to 10240 bytes. LED indicators for power UTP and fiber status. The Micro Mini Media Converter is ideal for bringing fiber to the desktop and for mobile applications where light weight compact size and low power requirements are critical. Weighing only 2.5 ounces and about the length of a house key this ultra-compact media converter is portable yet powerful. For extra versatility it can be USB-powered making it easy to provide fiber connectivity to locations where AC or DC power is unavailable for instance field-deployed fiber-to-the-laptop. For easy portability this tiny converter conveniently slips into a pocket or laptop carrying case. The converter is plug-and-play with an RJ-45 port that autonegotiates for speed duplex mode and crossover functions for PCs with 10BASE-T 100BASE-TX and 1000BASE-T Ethernet. On the fiber side the converter has an ST connector for connection to single-mode fiber. Because it can be powered through a computer’s USB 1.0 or 2.0 port the Micro Mini Media Converter is ideal for connections to fiber in areas where a spare power outlet may not be available. When plugged into a computer’s USB port the media converter shuts down automatically when you turn off the computer which saves energy.
SKU: LMC4003A Category: Tag:
Category Details
Overview
Brand Black Box
Product Line Black Box
Model Micro Mini Media Converter
Manufacturer Black Box
Network & Communication
Cable Type Ethernet 1000Base-LX, Ethernet 1000Base-T, Ethernet 100Base-TX, Ethernet 10Base-T
Connectivity Technology Wired
Data Link Protocols Ethernet, Fast Ethernet, Gigabit Ethernet
Data Transfer Rate 1 GBps
Features Auto-negotiation, Jumbo Frames support, USB powered
Form Factor External
Max Transfer Distance 7.5 miles
Optical Wave Length 1310 nm
Product Type Fiber media converter
Status Indicators Link/activity, Power
Connectivity
Interface Provided 1 x Ethernet 1000Base-LX – ST single-mode female x 2, 1 x Ethernet 10Base-T/100Base-TX/1000Base-T – RJ-45 female, 1 x USB – Type B
Power
Frequency 50 – 60 hertz
Cables
Left Connector SD Type RJ-45
Right Connector Type (SD) ST single-mode
Technical Information
Max Operating Temperature 122°F
Min Operating Temperature 32°F
Operating Humidity 5 – 95% (non-condensing)
Product Information
Device Type External power adapter
Packaged Quantity 1
Dimensions & Weight
Height 0.8 inch
Weight 2.5 ounce
Width 1.7 inch
Depth 2.2 inch
Certifications & Listings
TAA Compliant Yes
