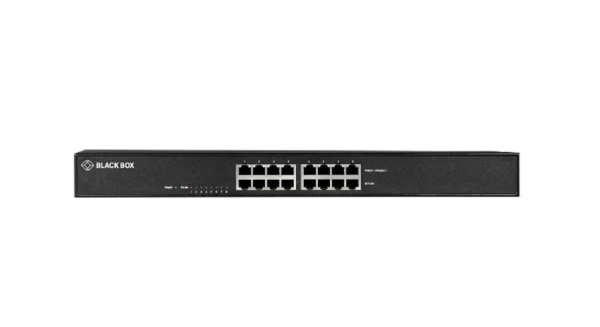

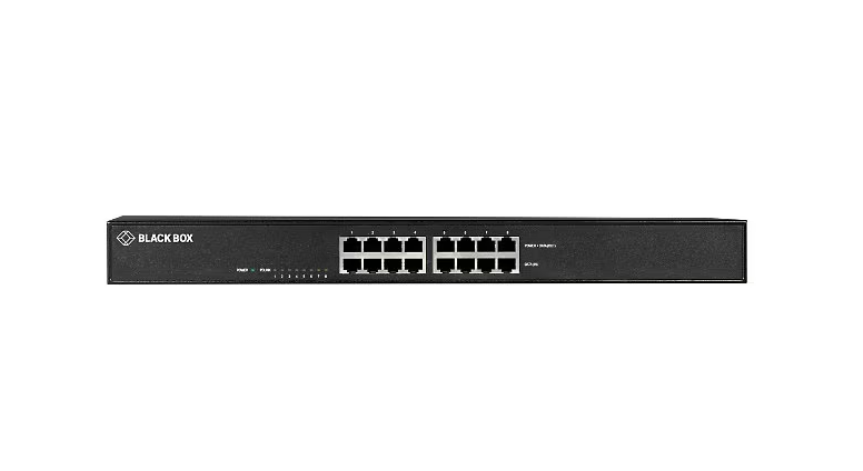

Black Box POE+ Gigabit Ethernet Injector 8-Port – PoE injector – 250 Watt – TAA Compliant

Add to Wishlist

Quick tech specs

  • Supports 10-/100-/1000-Mbps midspan data connections on an RJ-45 input/output
  • Diagnostic LEDs indicate 802.3at device detection
  • Provides 30W of safe PoE Plus power to each device
  • An economical wiring solution,carries both data and power over a single Ethernet cable
  • Powers 802.3at and 802.3af compliant devices
  • Supports Gigabit Ethernet data connections for high-speed equipment

3,099.00 د.إ

Add to Wishlist

Know your gear

The Black Box PoE+ midspan injectors are used in Enterprise applications to power VoIP phones, wireless access points, IP security cameras and more. PoE+ injectors add power to the Ethernet link and will help you avoid upgrading non-PoE switch infrastructure. PoE enables you to avoid installing AC power at a remote powered device.

SKU: LPJ008A-T-R2 Category: Tag:
Category Details
Overview
Brand Black Box
Product Line Black Box
Model POE+ Gigabit Ethernet Injector 8-Port
Manufacturer Black Box
Network & Communication
Compliant Standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Power Over Ethernet (PoE) PoE+
Connectivity
Input Connectors 1
Interface Provided 8 x Gigabit LAN – RJ-45
Power
Emergency Power Off Auto negotiating, LED indicators, Short-circuit protection
Frequency 47 – 63 hertz
Input Voltage Range AC 90 – 264 V
Output Connector Quantity 8
Power Output Connectors Details 8 x RJ-45 – 56 V
Power Provided 250 watt
Provided Voltage 56 volt
Required Voltage AC 120/230 volt
Technical Information
Form Factor (Power Device) Rack-mountable
Max Operating Temperature 104°F
Min Operating Temperature 14°F
Operating Humidity 10 – 90% (non-condensing)
Product Information
Features Auto MDIX support, Backpressure, Flow control
Packaged Quantity 1
Product Type PoE Injector
Rack Mounting Kit Included
Subcategory Power converters, splitters and accessories
Dimensions & Weight
Height 1.8 inch
Height (Rack Units) 1
Rack Size 19″
Rack Size (metric) 48.3 cm
Weight 5.95 lbs
Width 17.3 inch
Depth 8.6 inch
Physical Characteristics
Color Category Black
Certifications & Listings
Compliant Standards cUL, FCC Class A certified, Plug and Play, RoHS, UL
TAA Compliant Yes
