Black Box Radian 4U 11-slot 800W Video Wall Controller Chassis

Radian Processor Chassis are the heart of our Video Wall Controller Solutions, and provide the basis from which the system is configured and built. They are servers with a motherboard including Windows® 10 LTSC OS, processor, connectivity ports for local control screens, Ethernet, and USB devices, internal RAM and SSD storage, and PCIe x8 slots for connection of Capture, Streaming, and Graphics cards.

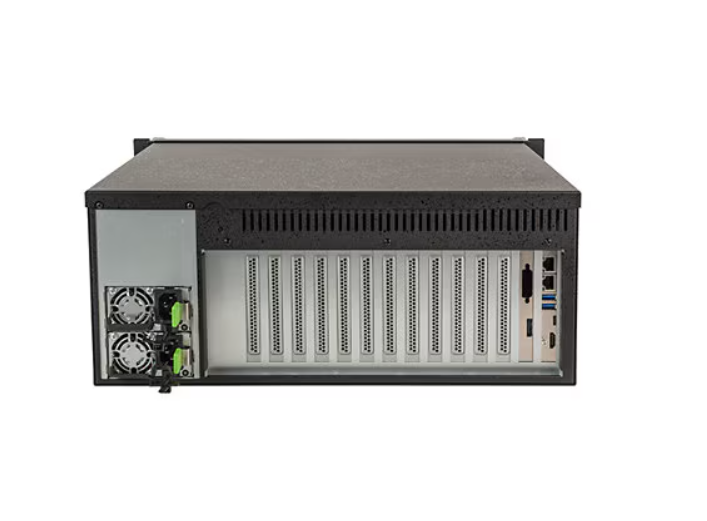

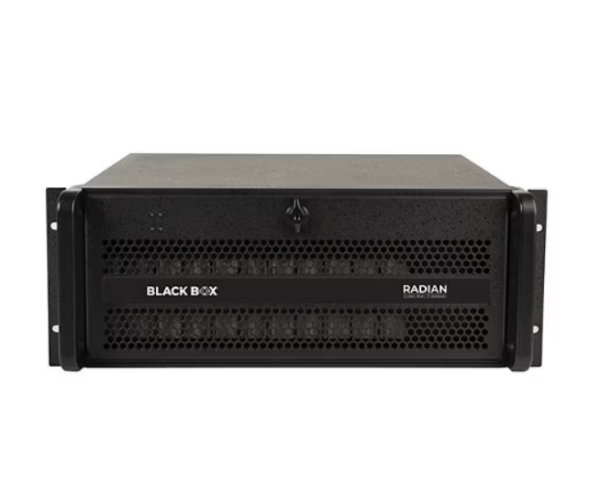

The VWP-1107R is a 4U Rackmount Chassis with (x11) Slots of PCIe card capacity, an Intel Core i7 processor, Windows 10 LTSC Operating System, 32GB RAM, (x2) 240GB SSD Storage (RAID Configured), and an 800W redundant power supply. It includes local HDMI and DisplayPort outputs for connection of a local control screen, and a variety of USB ports for connectivity.

A highly flexible solution, it allows for customization to your needs, with upgrades available to switch from a single power supply to a RPSU, add a higher performing processor, and to increase RAM and Storage capacities. And if you need to increase card capacity along the way, expansion chassis can be added to the system to provide the amount of PCIe card slots you need. Contact Black Box Technical Support today and we’ll help you configure a solution that meets your needs.
