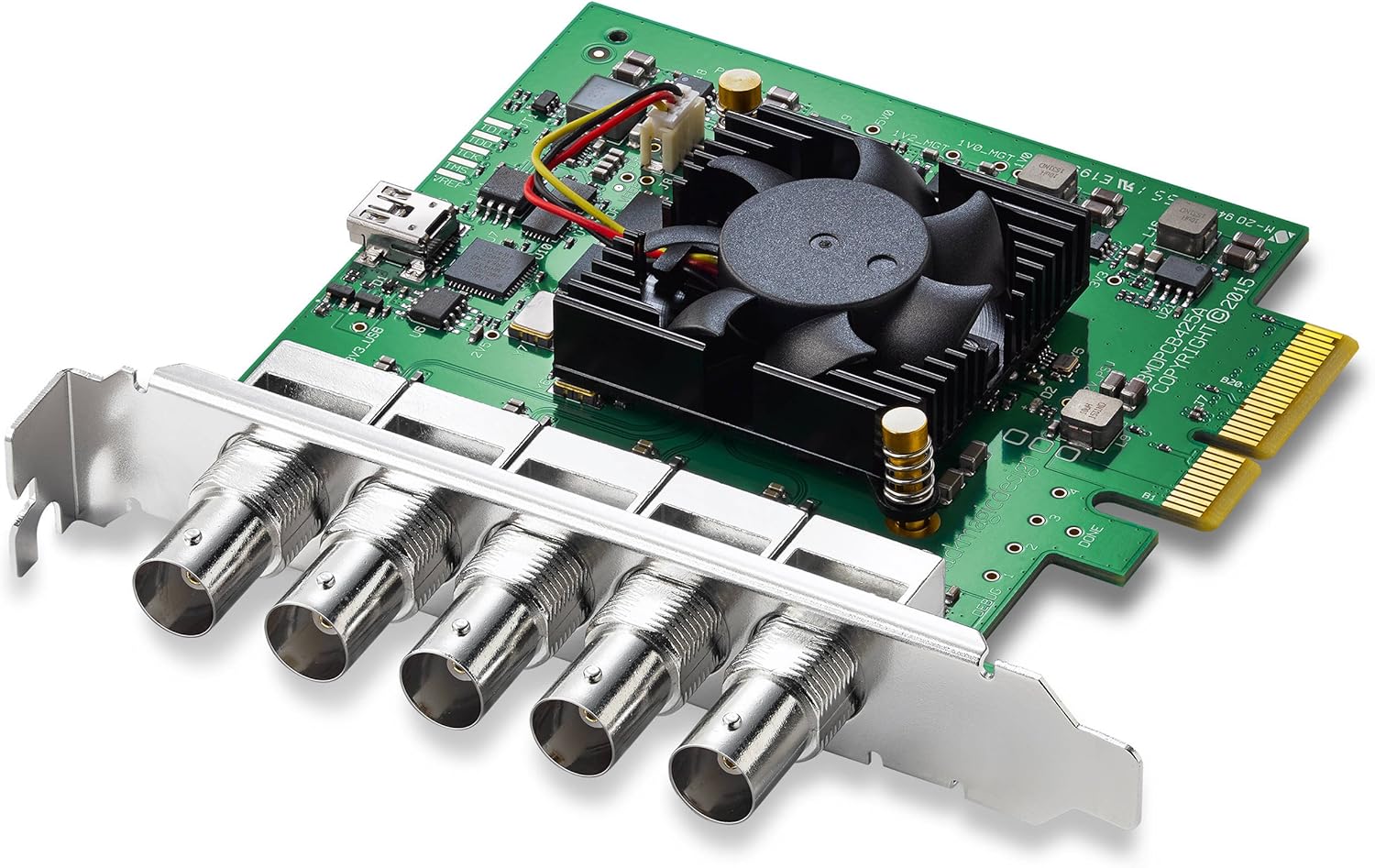

Blackmagic Design DeckLink Duo 2 4ch SDI Playback and Capture Card BMD-BDLKDUO2

Add to Wishlist
Key Features
  • SD/HD/3G-SDI Input/Output
  • PCI-E Interface
  • 1080p 4:4:4 by Single-Link 3G-SDI
  • 10/12-Bit Processing
  • Down/Up/Cross Conversions
  • Mac OS X, Windows, and Linux Compatible

AED1,999.00

Add to Wishlist
  • DeckLink Duo 2 takes up only one single PCI slot in the computer,
  • High performance 4 lane Generation 2 PCI Express
  • DeckLink Duo 2 can also capture and playback at the same time, and also includes a reference connection for black burst/tri-sync

With four bi-directional SDI interfaces, the Blackmagic Design DeckLink Duo 2 is a versatile video I/O card for professional video workflows. Since each SDI interface can be configured to be either an input or an output, a computer with this card installed can be purposed as a media play-out system, a multi-screen digital signage server, a live keyer, a real-time multi-channel capture system, or a combination of the above to fit your specific workflow of the moment. A reference input is also available for syncing with other studio equipment.

Processing
  • Color space conversion: Hardware based real time
  • HD down conversion: Built-in, high-quality software down converter from HD to SD on output. Down converted SD selectable between letterbox, anamorphic 16:9, and center cut 4:3 styles.
  • HD up conversion: Built-in, high-quality software up conversion from SD to 720 or 1080 HD on input. Selectable between 4:3 pillarbox, 14:9 zoom, and 16:9 zoom.
  • Cross conversion: Built-in, high-quality hardware cross conversion from 720 to 1080 HD, and 1080 to 720 on playback.
  • Real-time effects support: Final Cut Pro X internal effects, Premiere Pro CC Mercury Playback Engine effects, and Avid Media Composer internal effects.
Software Compatibility

The DeckLink Duo 2 interfaces with many popular NLE, DAW, and professional software programs including:

  • Blackmagic Design: DaVinci Resolve, Fusion 8
  • Apple: Final Cut Pro X
  • Adobe: Premiere Pro CC, After Effects CC, Photoshop CC
  • Avid: Media Composer, Pro Tools
  • Steinberg: Cubase, Nuendo
SKU: DeckLink BDLKDUO2 Category:
