Presentation switchers

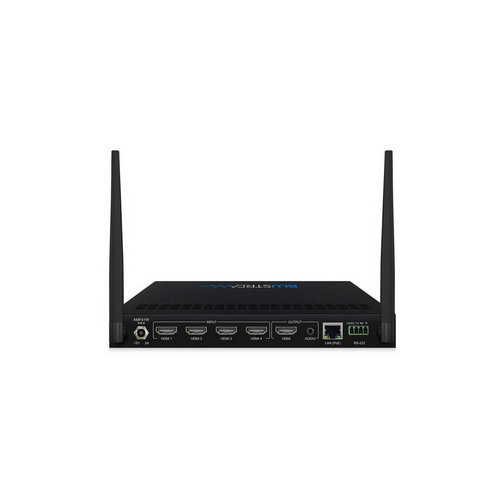

Blustream AMF41W 4×1 Advanced Wireless Presentation Switch
- Features 4x HDMI, AirPlay and Miracast inputs which can be switched to a single HDMI output
- Localised 2.4G/5G WiFi hotspot to host AirPlay and Miracastr local streaming to AMF41W
- Multiview presentation with up to 7 concurrent video signals and configurable screen layout
- Seamless switching of sources in both single or multiview mode
- In-built video scaler with output timing up to 4K 60Hz 4:4:4
د.إ10,499.00
The AMF41W is an advanced 4K multi-format presentation switch featuring 4 x HDMI, AirPlay and Miracast® inputs to a single HDMI output.
The AMF41W provides enhanced features including localised 2.4/5G WIFI hotspot, seamless switching, multiview presentation, video scaling and web GUI for control and configuration.
The AMF41W also features auto display control via RS-232, manual or automated source selection and control via front panel, RS-232 and TCP/IP. The AMF41W is an ideal product for your boardroom, classroom or huddle-space application.
-
Features:
- Features 4x HDMI, AirPlay and Miracast inputs which can be switched to a single HDMI output
- Localised 2.4G/5G WiFi hotspot to host AirPlay and Miracastr local streaming to AMF41W
- Multiview presentation with up to 7 concurrent video signals and configurable screen layout
- Seamless switching of sources in both single or multiview mode
- In-built video scaler with output timing up to 4K 60Hz 4:4:4
- HDMI inputs support resolutions up to 4K UHD 60Hz 4:2:0 / 4K 30Hz 4:4:4
- Supports AirPlay mirror and Miracastr point-to-point mode (up to 1080p)
- Audio breakout to analogue L/R audio
- LAN connection for integration to existing network infratructures
- Auto display on/off feature allowing control of display via RS-232
- Web interface module for control and configuration of switch
- Control via front panel, RS-232 and TCP/IP with manual or auto source selection
-
Specifications:
- Video Input Connectors: 4x HDMI Type A, 19-pin, female
- Video Output Connectors: 1x HDMI Type A, 19-pin, female
- Audio Output Connectors: 1x 3.5mm stereo jack
- RS-232 serial port: 1x 4-Pin Phoenix connector
- TCP/IP Control: 1x RJ45, female
- USB Connectors: 1x USB Type A female
- WIFI: 2.4G & 5G
- Casing Dimensions (W x H x D): 215mm x 25mm x 141mm (excluding antennas)
- Operating Temperature: 32°F to 113°F (0°C to +45°C)
- Storage Temperature : -4°F to 150°F (-25°C to +70°C)
- Power Supply: 12V/2A DC
-
Item Includes:
- 1x AMF41W
- 1x 12V/2A DC power supply
- 1x 4-pin phoenix connector (RS-232)
- 2x Antenna
- 1x Mounting kit
- 1x Quick reference guide
