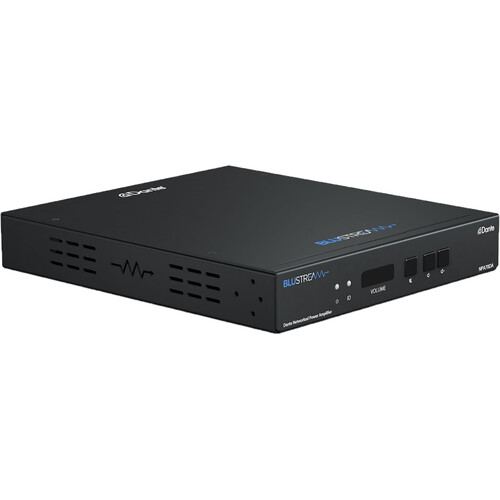

Blustream Dante Networked Power Amplifier

Add to Wishlist
Key Features
  • Networked Audio Zone Amplifier
  • Powers via PoE++ over Dante
  • Front Panel Control via IR / RS-232 / IP
  • DSP with 31-Band EQ
  • Built-In Web GUI for Setup and Control

AED6,099.00

Add to Wishlist

Bring advanced audio integration in your commercial or residential AV installation with this Dante Networked Power Amplifier from Blustream. This versatile networked audio zone amplifier can provide dual 35W power for 2-channel applications or 70W in mono with support for 70/100V high-level constant voltage output and Dante integration.

The unit can be powered via PoE++ (Power over Ethernet) from a compatible network switch or locally if the network switch being employed does not support PoE++. It supports DSP, has a 31-band EQ, and can be controlled via front-panel buttons, IR, RS-232, or IP, and has a built-in web GUI for setup and control. The amplifier comes with a 24 VDC power supply as an alternate powering option and mounting kits for rack, wall, or surface mounting.

Features at a Glance
  • Advanced network audio amplifier with Dante integration
  • Supports 2 x 35W at 4 / 8 ohms or 1 x 70W at 4/8 ohms
  • 70/100V constant output for multiple speakers with longer cable runs
  • Supports power via PoE++ on Dante LAN connection or local power via included power supply
  • Dual network option with independent Dante and LAN control ports, or combined to a single LAN
  • 2-Channel Dante / AES67 audio input
  • DSP with 31 band EQ with +3 dB / -10 dB and audio delay
  • Local 12V input trigger for automated power control
  • Control via front panel, IR, RS-232, and IP
  • Auto-standby mode with signal sensing
  • Built-in web GUI for setup and control
SKU: NPA70DA Category: Tag:
Key Specs
Number of Channels
2
Amplifier Power Rating
1x 70 W
2x 35 W
DSP
Yes
Analog Audio I/O
1x Block 3-Pin Female 70/100 V Output
Digital I/O
1x Block 4-Pin Output
Network I/O
1x RJ45 AES67 / Dante
1x RJ45 Ethernet (PoE)
Rackmount Size
1 RU (with Included Hardware)
Amplifier
Number of Channels
2
Amplifier Power Rating
1x 70 W
2x 35 W
Amplifier Class
Class-B
Performance
Protections
No
Signal Processing
DSP
Yes
Latency
1 to 5 ms
Audio Delay
Adjustable Up to 5 ms
Crossover
Yes
EQ
31-Band
Ducking/Muting
No
Limiting
No
Connectivity
Analog Audio I/O
1x Block 3-Pin Female 70/100 V Output
Digital I/O
1x Block 4-Pin Output
Network I/O
1x RJ45 AES67 / Dante
1x RJ45 Ethernet (PoE)
Other I/O
1x Block 3-Pin RS-232 Input
1x Block 3-Pin IR Input
1x Block 2-Pin 12 V Trigger Input
USB I/O
No
Phantom Power
Yes
Mobile App Compatible
No
Wireless
No
Power
AC Input Power
Not Specified by Manufacturer
Current Consumption
3.5 A
Physical
Display & Indicators
LED (Mute/Power)
Rackmount Size
1 RU (with Included Hardware)
Certifications
CE, FCC, UKCA
Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
-4 to 140°F / -20 to 60°C
Dimensions
8.0 x 1.2 x 6.9″ / 202.0 x 31.0 x 175.0 mm
Weight
4 lb / 1.8 kg
