Blustream SC11HD-V2 HDMI 4K Down-Scaler w/Audio Embed & De-Embed

Add to Wishlist
  • HDMI 4K video scaler
  • Supports 4K UHD video input (3840 x 2160 @24/30Hz 4:4:4 with HDR), 3840 x 2160 @ 50/60Hz 4:2:0)
  • HDMI output will downscale 4K@24/25/30Hz to 1080p@24/25/30Hz, and 4K@50/60Hz 4:2:0 to 1080p@50/60Hz
  • Can be configured to work as either a HDMI audio de-embedder or audio embedder

AED1,299.00

Add to Wishlist

The Blustream SC11HD-V2 is a HDMI 4K scaler, designed for installations with multiple displays that support different maximum video resolutions. The SC11HD-V2 is ideal for multi-room installations with multiple output resolution requirements.

The SC11HD-V2 supports downscaling of 4K (inc.HDR) video to 1080p and supports HDCP2.2 with advanced EDID management. It also features either de-embedding or embedding audio within the HDMI signal path.

  • Features:

    • HDMI 4K video scaler
    • Supports 4K UHD video input (3840 x 2160 @24/30Hz 4:4:4 with HDR), 3840 x 2160 @ 50/60Hz 4:2:0)
    • HDMI output will downscale 4K@24/25/30Hz to 1080p@24/25/30Hz, and 4K@50/60Hz 4:2:0 to 1080p@50/60Hz
    • Can be configured to work as either a HDMI audio de-embedder or audio embedder
    • HDMI audio de-embedded to both analog L/R audio and coaxial digital outputs concurrently (2ch PCM only)
    • Embed analog L/R 2ch audio input onto HDMI output
    • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
    • Advanced EDID management
    • HDCP2.2 support
    • CEC and ARC pass through
SKU: SC11HD-V2 Category: Tag:

  • Specifications:

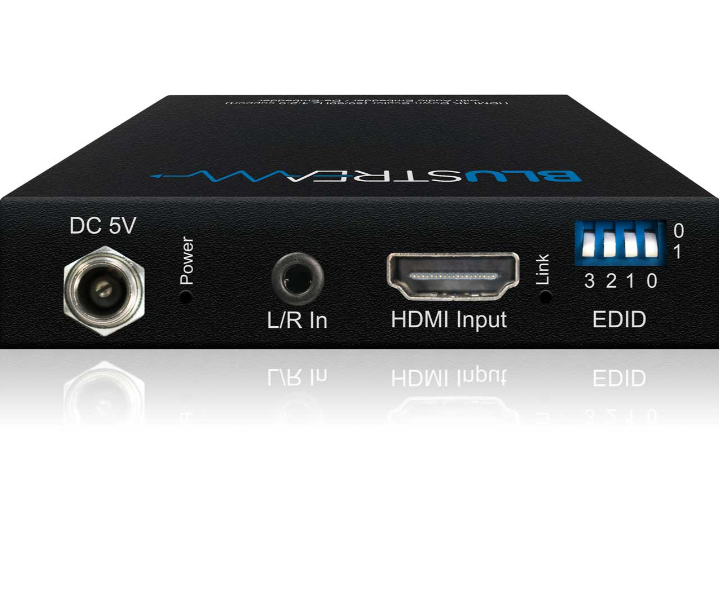

    • Audio Input Connectors: 1 x Analog Left / Right audio (3.5mm stereo jack)

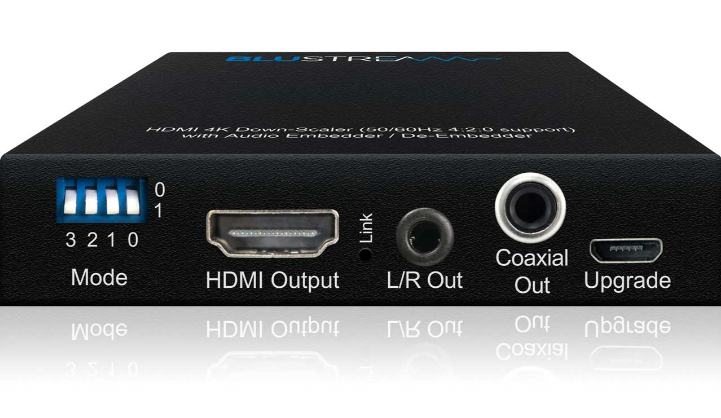

    • Audio Output Connectors: 1 x RCA (S/PDIF) & 1 x Analog Left / Right audio (3.5mm stereo jack)
    • Video Input Connectors: 1 x HDMI Type A
    • Video Output Connectors: 1 x HDMI Type A
    • EDID: 4-PIN DIP switch
    • Mode: 4-PIN DIP switch
    • Product upgrade: 1 x Female Micro USB
    • Dimensions including connections (W x H x D): 83mm x 15mm x 83mm
    • Shipping Weight: 0.5kg
    • Operating Temperature: 32°F to 104°F (0°C to 40°C)
    • Storage Temperature : -4°F to 140°F (-20°C to 60°C)
    • Power Supply: 5V/1A DC

  • Item Includes:

    • 1x SC11HD-V2
    • 1x 5V/1A DC power supply
    • 1x Mounting kit
    • 1x User manual
