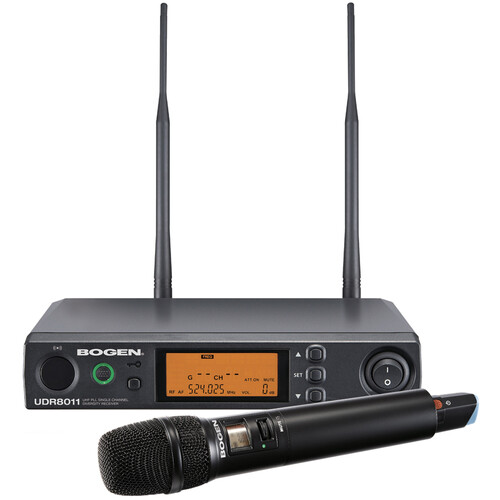

The Bogen Communications UHF8011HH is a rackmount wireless handheld microphone system that brings reliable transmission and high-quality audio to presenters, performers, clergy, and lecturers. Fast to set up and easy to operate, it is suitable for A/V installations in lecture halls, conference rooms, and houses of worship as well as for use in broadcast applications.
The UHF8011BP features a half-rack receiver with antenna diversity reception via dual detachable 1/2 wave antennas in the rear. The receiver’s auto-scan function searches a 36 MHz UHF tuning range with 114 selectable frequencies available, seeking out a clean, interference-free channel, even when operating multiple systems simultaneously.
This configuration comes with a handheld microphone with a built-in transmitter. The transmitter runs on two AA batteries, with a switchable 10 or 50mW RF power output and a line-of-sight transmission range up to 500′.
An Easy-to-Use Handheld Microphone System
- Auto-scan instantly locates a clear, interference-free channel for safe transmission
- Antenna diversity switches between the two antennas to find the strongest incoming signal to reduce interference and dropouts
Handheld Microphone Transmitter
- Automatically synchronize the frequency between the transmitter and the receiver via the easily accessible ultrasonic sync port
- Cardioid polar pattern picks up less background sound helping to reduce feedback on loud stages
- The handheld transmitter runs on two AA batteries
- Backlit LCD shows group, channel, and battery status
- Mic input level adjustable from receiver
- Lightweight design with external charging port for rechargeable batteries—requires UHFDCD dual charging dock (available separately)
1/2 Rack Tabletop Receiver
- Detachable 1/2 wave antennas
- Multifunction, backlit LCD showing group, channel, frequency, and transmitter battery strength
- The back panel houses a balanced XLR mic/line level output as well as an unbalanced 1/4″ instrument-level output
- Output volume control via front panel
- Rackmountable with RPK900 single/dual rackmount kit (available separately)
Improve Your Wireless Performance
- Adding the UHFASA antenna signal amplifier and/or the UHFUDA passive unidirectional antenna (both available separately) increases the range of your system and offers increased protection against interference
- The UHFADS antenna distribution system (available separately) lets you stretch the power of your antenna pairs, giving you more on-air channels in less setup time
