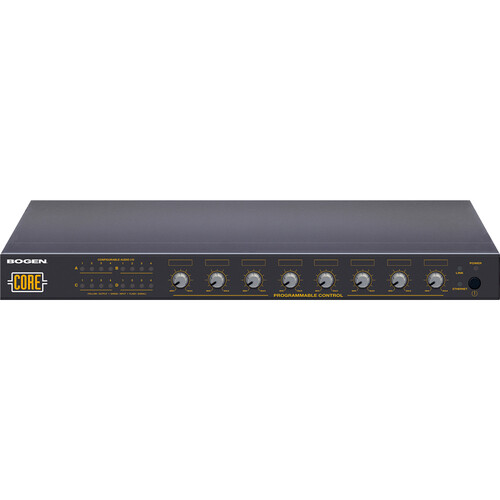

Bogen CORE 16×0 Universal Audio Processor

Add to Wishlist
Key Features
  • 16 Analog Inputs
  • For Small to Medium Installations
  • Configure via Windows PC/Laptop
  • Programmable Knobs for DSP Functions
  • Third-Party RS-232 Control, IP Command
  • DSP Drag-and-Drop Component Library
  • Up to 53-Minute Message Storage
  • 16 TTL Inputs
  • 8 Logic Outputs
  • Stack up to 12 Units

16,999.00 د.إ

Add to Wishlist

The CORE 16X0 from Bogen Communications is a versatile drag-and-drop DSP processor designed for paging and multizone audio routing in small to medium commercial and public installations; this version is configured with sixteen analog inputs and no analog outputs. The processor consists of a configurable hardware main frame along with dedicated DSP software that you configure via computer for your specific requirements. The front-panel knobs can be programmed to map to any functions within the DSP library and can be scaled to match the project requirements.

The software system design is PC based and once connected via the RJ45 port, allows for design, downloading, reversal of in-box designs, and live monitoring, calibration, and routing. Third-party control systems such as Crestron, AMX, Vity, and others can also control the unit either via RS-232 or IP commands. Store up to 53 minutes of audio and activate the files with a built-in scheduler, any of sixteen TTL inputs, or via an end-user GUI interface custom built for each application.

Expand the system by networking up to 12 CORE units and add a variety of accessories, including low-cost analog controllers (RAC), digital controllers (URC), and various paging and control microphones (PPM, PPM Touch).

Features
Sixteen analog inputs only, no analog outputs
Configuration via PC/Laptop
Programmable, scalable front-panel knobs for DSP functions
Third-party control via RS-232 or IP commands
Full DSP drag-and-drop component library
Up to 53-minute built-in message storage
16 built-in TTL inputs and eight logic outputs
Stack up to twelve units
Hardware Components
Main Frame
4 x Slots for input/output cards
16 x TTL/analog inputs
8 x TTL outputs
1 x RS-485
1 x RS-232 port
1 x Ethernet port

Each Input Card
4 x Channels with individual bypass
Mute
Sensitivity select
Phantom power
RTO (Route To Output)
VU meter
Signal present
Level control
Adjustable overload threshold

Each Output Card
4 x Channels with individual overload indicator
Mute
Meter
Signal present
Level control
Adjustable overload threshold

Software Components
Delays
5 to 2000 ms

Dynamics
AGC (mono and stereo)
Automatic noise sensing
Compressor
Comp-limiter
Expander (mono and stereo)
Ducker (mono and stereo)
Mono and stereo gate
Voice Gate
Gate with sidechain

Equalizers
Mono and Stereo GEQ (1 octave, 2/3 octave, 1/3 octave)
Mono and Stereo PEQ (2, 4, 6, 8, 10, 16 bands)

Feedback Cancellation
Dynamic Feedback cancellation 1/5, 1/10, 1/20, and 1/100 octave with 4, 8, 12, or 16 bands

Inverter

Level Controls
4 x 4, 8 x 8, 16 x 16

Local Echo Suppression Module

Meters
1, 4, 8, 16 channel peak/RMS Logic
And, Not, Or, Nor gates with Net input/output for network applications

Message Repeater
Up to 53 minutes of audio can be stored inside the box and output two separate messages simultaneously to independent zones—messages can be activated using TTL inputs or via the built-in scheduler

Mixers
Automixers
Automixers with mix minus
Matrix mixers
Standard mixers
Room combiner

Noise Generator
White
Pink
Tone

Page Control Module
For zone paging applications

Selectors
4×1, 5×1, 6×1, 7×1, 8×1, 16×1, 32×1 for use with third-party control or ATEIS RAC, URC remote controllers

Custom Components
Build a custom program and password protect it

SKU: CORE16X0 Category: Tag:
Inputs / Outputs
Audio I/O
4x Block Line/Mic Input
Power
Power Source
AC Input (Included)
AC Input Power
100 to 240 VAC, 50 / 60 Hz
Physical
Dimensions
17.13 x 11.63 x 1.75″ / 43.51 x 29.54 x 4.45 cm
Weight
8 lb / 3.6 kg
