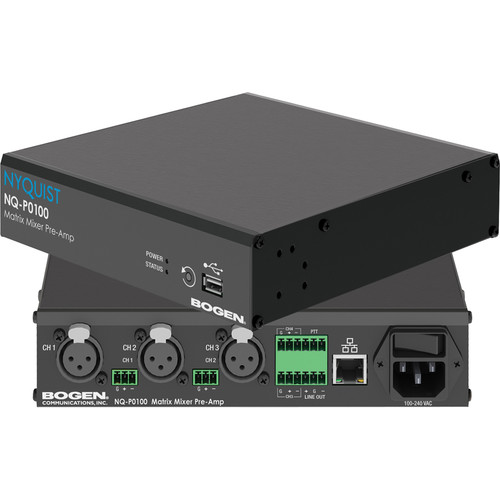

Bogen Matrix Mixer Pre-Amp


  • Mixer for Commercial Applications
  • Multi-Zone Paging & BGM Distribution
  • 4-Channel Mixer
  • Comprehensive DSP for Signal Processing
  • Networkable
  • Can Handle Analog or Digital Inputs
  • Can Handle 15V Phantom Power for Mics

2,899.00 د.إ

Developed to handle the needs of commercial spaces, theĀ Bogen Nyquist Network Matrix Mixer PreampĀ (or MMPA, for short), is a four-channel unit designed to be permanently installed in various customer-facing spaces. The mixer offers versatility and flexibility at a wallet-friendly price, giving you a bevy of connections, push-to-talk functionality, the ability to network, and digital inputs if necessary. Use the MMPA for multi-zone paging, background music distribution, and more. It’s great for businesses, restaurants, retail stores, industrial facilities, and similar venues.

The mixer offers built-in DSP for extensive, comprehensive signal processing, so you can mix multiple channels with EQ, compression, gating, and limiting. The resulting audio signal mix can be directed to the MMPA’s line output jack, or streamed over a network, where it can be piped to more zones in a facility.

4 MIC/Line inputs
Channels 1 through 4 offer configurable balanced/unbalanced inputs via 3 XLR and 4 screw-terminal connections
Any single channel can be configured to support push-to-talk mic applications
Mic inputs can be configured to supply phantom power when needed
Channel 1 can alternately be configured as an AES3 digital input
Web-based DSP control
16-band graphic equalizer
Signal present and clip monitor
Adjustable High Pass, Low Pass, and Bandpass filters
Noise Gate
Compressor/Limiter
7-band parametric equalizer
Mixed signals can be routed to Line Out or over the Nyquist network
Nyquist network-based audio input (paging, audio distribution)
Line-level monitor output to drive input to legacy amplifiers
SKU: NQ-P0100 Category: Tag:
Mic Input Sensitivity
Continuously Variable from 0.1 to 0.006 V RMS
Phantom Power
+15 VDC
EIN
100 dB
S/N Ratio
97 dB
Line Input Sensitivity
Continuously Variable from 2V to 0.1V RMS
Frequency Bandwidth
Line Out: 20 Hz to 20 kHz
Level
Line Out: 3 V (+10 dB), 600-Ohm Balanced, via 3-Pin Phoenix on 6-Pin Phoenix Plug/Header
THD+N
< 0.03% at 1 kHz
I/O
Channels 1, 2: Balanced 3-Pin Phoenix Plugs/Headers, and Balanced 3-Pin Neutrik XLRs
Channel 3: Balanced 3-Pin Phoenix on 6-Pin Phoenix Plug/Header, and Balanced 3-Pin Neutrik XLR
Channel 4: Balanced 3-Pin Phoenix via 6-Pin Phoenix Plug/Header; RJ45; USB 2.0 Type A
Push-to-Talk (PTT)
DDU250 or Equivalent, 500-Ohm with a 4-Conductor Cable (2 Shielded)
PTT Dry Contact Switch Input on Pin-5 of 6-Pin Phoenix Plug/Header
AES3 Input
Channel 1 Alternately Functions as an AES Digital Input (110-Ohm)
Voltage Range
85 to 265 VAC, 50/60 Hz
Maximum Current
0.6 A
Indicators
Status & Power LEDs (Front) / Network LEDs (Rear)
Operating Temperature
5 to 104°F / -15 to 40°C
Networking
Cat 5 or higher
Dimensions
8 x 1.7 x 8.6″ / 20.3 x 4.3 x 21.8 cm
Weight
2.6 lb / 1.2 kg
