Bogen Nyquist VoIP Plenum-Rated Intercom Module with HDMI Output

Add to Wishlist
Key Features
  • For VoIP Paging/Intercom Applications
  • Supports a Low-Impedance (8 Ohm) Speaker
  • PoE 802.3af Compliant
  • UL 2043 Plenum Rated
  • HDMI Output for AV Applications
  • CAN Bus for NQ-E7020 Digital Call Switch
  • Form-C Relay for 3rd Party Devices
  • Talkback & Push-to-Talk Mic Support
  • Web-based Configuration
  • Integrated Slotted Mounting Flanges

AED2,299.00

Add to Wishlist

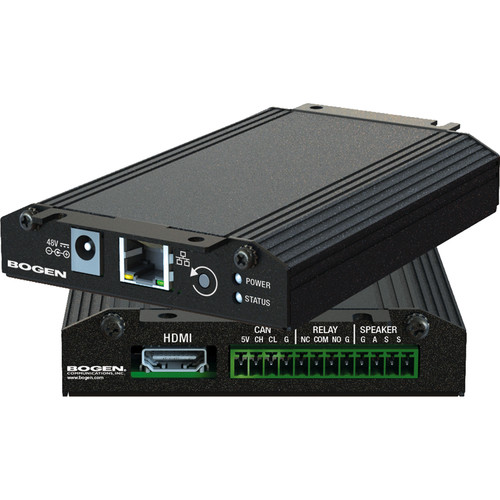

Add flexibility and versatility to your building’s intercom design with this Nyquist VoIP Plenum-Rated Intercom Module with HDMI OUT from Bogen Communications. This module can be placed in a building’s plenum-space and hooked up to a low-impedance (up to 8 Ohms) speaker. Connect the module to a network via an Ethernet connection and with the built-in talkback capability, you can utilize VoIP intercom applications to broadcast and communicate to the speaker.

The Ethernet connection supports 802.3af PoE to unify power and communication over a single cable, but the module can also be powered via an optional PS4815W AC adapter as well. A CAN bus and Form-C relay interfaces on the module provide control over other connected third-party devices and an optional NQ-E7020 Digital Call Switch. This module also features an HDMI 1.3 output for simultaneous AV applications.

Additional Features
Push-to-Talk microphone support (Bogen DDU250 or equivalent)
Audio input that can route anywhere over the Bogen Nyquist network
DSP-based noise rejection and voice bandwidth optimization
Web-based configuration utility
Analog call switch support (Bogen CA15C or equivalent)
Control relay output
UL 2043 plenum rated
Integrated slotted mounting flanges
SKU: NQ-GA10PV Category:
Power Output
10 W @ 8 Ohms
S/N Ratio
80 dB
THD + N
<.05% THD+N (@ 1 kHz Rated Power)
Rated Load Impedance
8 Ohms
Frequency Response
20 Hz to 20 kHz +/- 0.25 dB (@ 1 W)
Audio Amplifier
Class of Operation: D
External DC Source
48 to 56 VDC / .3 A (5.5mm x 2.1mm Barrel Jack)
DC Input
15 W 48 V to 56 V
PoE
IEEE 802.3af Class 3 Device (RJ-45)
I/O Connector
12-Pin Phoenix Plug/Header
CAN Bus Protocol
5 VDC; CH (CAN Hi); CL (CAN Low); G (Ground); Bus Speed 125 kb/s (For connection to Bogen’s NQ-E7020 Digital Call Switch)
Push-to-Talk (PTT)
DDU250 or equivalent; 500 Ohm impedance with a 4-conductor cable (2 shielded) PTT dry contact switch on Phoenix Plug Terminals G & A; Mic audio on Phoenix Plug Terminals 1 & 2
Relay Contacts
SPDT Rated 2 A; NC (Normally Closed); Common; NO (Normally Open); G (Ground)
HDMI Output
HDMI 1.3 (Max. 1920 x 1080 @ 30 Hz)
Indicators
Power & Status LEDs (Front) / Network LEDs (Front)
Operating Temperature
5 to 104°F / -15 to 40°C
Protection
ESD, RF, DC, Low Frequency, Thermal, Low Impedance, Short Circuit, and Clip Limiting
Networking
Cat5 or better 10/100 network connectivity to Bogen’s Nyquist network
Certifications
FCC Part 15b Class A
ICES-003, Issue 6: 2016
EN 55032: 2012
EN 55035: 2017
UL 2043
Carries NRTL Safety Mark
Dimensions
3.8 x 0.9 x 6.2″ / 9.5 x 2.2 x 15.7 cm
Weight
0.7 lb / 0.3 kg
Other
Power Output Bandwidth: 20 Hz to 20 kHz > .1% THD+N
Call Switch Input: Dry Contact Closure on Phoenix Plug Terminals G & A (Bogen CA-15C or equivalent)
Analog Speaker Connection: Phoenix Plug Terminals 1 & 2
Audio Talkback: Half-Duplex using the analog speaker for talkback; Phoenix Plug Terminals 1 & 2
Ambient MIC Input: Ambient Noise Sensor Microphone (ANS500M); Phoenix Plug Terminals 1 & 2
