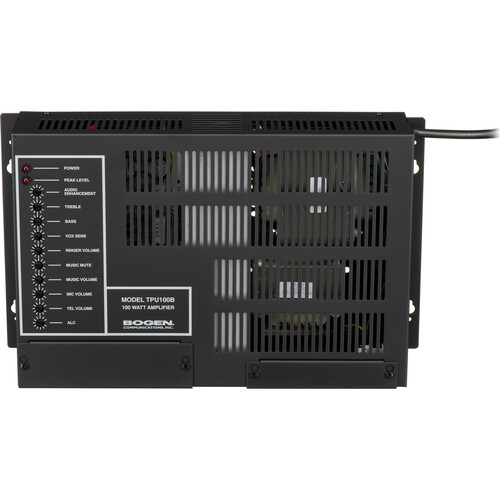

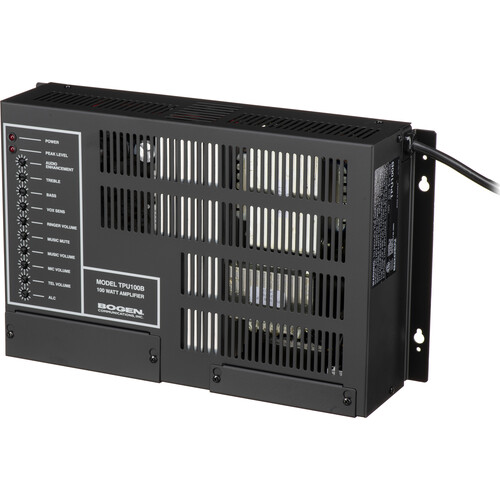

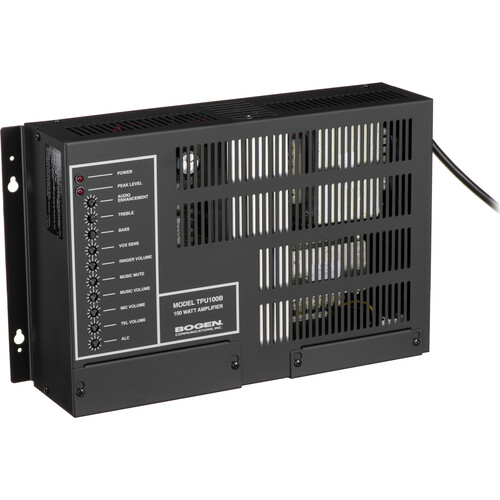

Bogen TPU100B – Telephone Paging Amplifier (100W)


Key Features
  • 100W
  • 25VCT, 25V and 70V Output
  • Balanced Mic Input
  • Screw and RCA Music Inputs
  • Variable Music Mute Feature
  • AphexĀ® Aural Exciter
  • Night Ringer
  • Wall Mountable

2,999.00 د.إ

TheĀ Bogen TPU100B Paging AmplifierĀ features 100 watts of power, is wall mounted and provides inputs for a paging microphone, music source, external telephone ringer, music mute trigger and more. The TPU100B amplifies background music and pages sent via telephone lines in any office setting, retail space, etc.

A variable music mute function adjusts the mute level of background music during pages and the on-board AphexĀ® Aural Exciter feature improves tonal quality and enhances intelligibility of the pages. There is an on-board ALC limiting circuit that prevents overload and distortion due to excessive audio peaks. Separate microphone and music volume controls also provide flexible control over the audio mix.

100W amplifier

  • Choice of outputs include 16-ohm, 25VCT, 25V, 70V balanced or unbalanced
  • Choice of inputs include RCA or screw-terminal Music Input, balanced microphone input, music mute trigger, contact ring, telephone ring and ground

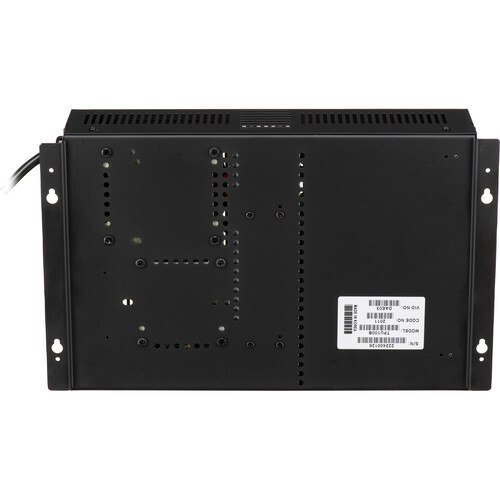

  • Flat design for easy wall mounting
  • Comprehensive dial controls on the front panel
  • Music Mute variable level adjustment
  • AphexĀ® Aural Exciter tonal enhancement feature
SKU: TPU100B Category: Tag:
Inputs
Screw Terminals:
Music Mute, Mic Balanced, GND, TEL, Music In, GND, Contact Ring, Tel Ring
RCA:
Music and Bridging
Outputs
Screw Terminals (Removable Panel):
16-ohms, 70V, 25V, 25VCT, COM and GND
Maximum Amplifier Power
100W
Frequency Response
70Hz to 15kHz +/- 1dB
Hum & Noise
-70dB (From 20Hz to 20KHz)
Distortion
Less Than 1% (80Hz to 15kHz)
Packaging Info
Package Weight
19 lb
Box Dimensions (LxWxH)
17 x 13 x 8″
