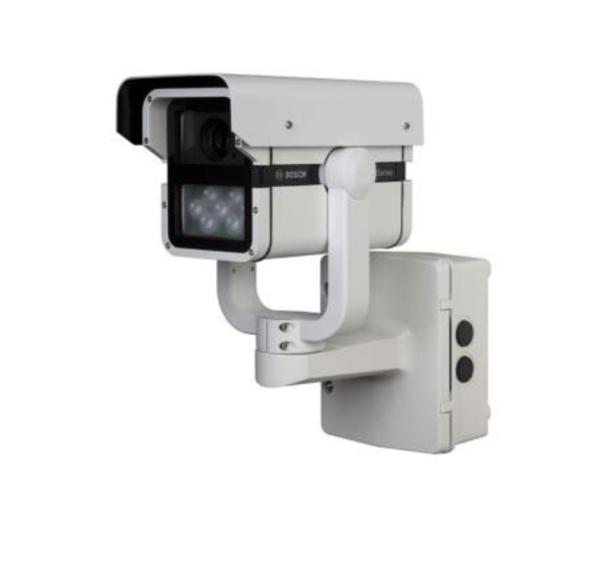

Bosch NAI-90022-AAA IP IR CAMERA, 2 MP / HD 1080p, TDN, 10 to 23M

Add to Wishlist

AED19,999.00

Add to Wishlist

IP IR CAMERA, 2 MP / HD 1080p, TDN, 10 to 23MM AF LENS, H.264, AUDIO/MOTION, POE, 850NM, IP66/NEMA4X, VANDAL IK10, SDHC/SDXC CARD SLOT, IVA INSTALLED

  • Active infrared 1080p30 HD camera specifically designed for 24-hour perimeter surveillance
  • Remotely adjustable high power infrared illumination for unmatched no-light performance up to 120 m (394 ft) detection
  • All-in-one integrated housing with auto zoom/focus SR lens for quick and easy installation
  • All-weather, vandal-proof design for reliable long-term performance
  • Embedded Intelligent Video Analysis firmware transforms camera into automated detector
SKU: BOS-NAI-90022-AAA Category: Tag:

Key Specifications

Full specifications

Power Supply +12 ~ 24 VDC; 24 VAC; PoE+ (52 VDC nominal)
Power Consumption 2.25 A 27 W (+12 VDC); 1.65 A 28 VA (24 VAC); 490 mA 25.5 W (POE+)
PoE (Power-over-Ethernet) 802.3at (Type 2); Power level: Class 4
Type 1/2.7‑inch CMOS
Pixels 1952 x 1092 (2.03MP)
Color 0.4lx
Monochrome 0 lx (IR)
Dynamic range 76 dB WDR 92 dB WDR (with IAE)
Day/Night Color, Monochrome (IR), Auto
Shutter Automatic Electronic Shutter (AES) Fixed (1/25[30] to 1/150000) selectable Default shutter
White Balance Indoor, Outdoor and Manual
Backlight compensation On, Off, Intelligent Auto Exposure
Noise reduction Intelligent Dynamic Noise Reduction with separate temporal and spatial adjustments
Contrast enhancement On/off
Sharpness Sharpness enhancement level selectable
Privacy Masking Four independent areas, fully programmable
Video Motion Analysis Intelligent Video Analysis
Other functions Video watermarking, Alarm mode stamping, Image mirror, Image flip, Contrast, Saturation, Brightness, Pixel counter
Video compression H.264 (MP); M- JPEG
Streaming Multiple configurable streams in H.264 and M-JPEG, configurable frame rate and bandwidth. Regions of Interest (ROI)
