info@techsouq.com| Category | Specification |
|---|---|
| General Information | |
| Product Name | Extended Power Support Dark Case UL/CSA |
| Manufacturer Part Number | DCN-EPS-UL |
| Product Model | DCN-EPS |
| Product Type | Power Supply |
| Power Description | |
| Output Voltage | 40 V DC |
| Output Power | 350 W |
| Physical Characteristics | |
| Form Factor | Freestanding, Rack Mount |
| Height | 3.9″ |
| Width | 8.7″ |
| Depth | 12.1″ |
Power Supply

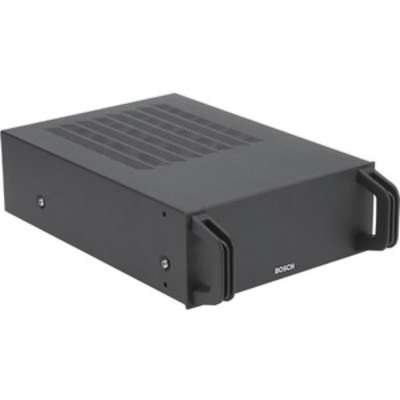

Bosch Security Extended Power Support Dark Case UL/CSA
- Easy to connect to DCN
- u Maximum supply power of 255 W
- u Built-in DCN network splitter allows installation at any convenient point in the system cabling
- u Loop-through cabling
- u Switches on automatically when the CCU is switched on
AED16,499.00
The Extension Power Supply unit is used in combination with a CCU to supply extra power to the DCN network.
Functions
Controls and Indicators
- “Power on” LED indicator
- Three indicators to indicate DCN outlet overload (red LEDs)
Interconnections
- Euro-mains socket with built-in fuse holder, mains cable 1.7 m (66.9 in) included
- 2 m (78.7 in) DCN cable with molded six-pole circular connector
- Six-pole circular socket for loop-through connection to the DCN network
- Three DCN outlet sockets for connection of units, plus extension power supplies. Each socket is protected against short-circuit (3 x six-pole circular sockets)
