BOYA BY-WM8 Pro-Kit 1 UHF Dual-Channel Wireless Lavalier System (556 to 595 MHz)


AED899.00

Key Features
  • Dual-Channel Wireless Receiver
  • 1 x Wireless Bodypack Transmitter
  • 1 x Omnidirectional Lavalier Microphone
  • 48 Selectable UHF Channels

BOYA BY-WM6-IIĀ Overview

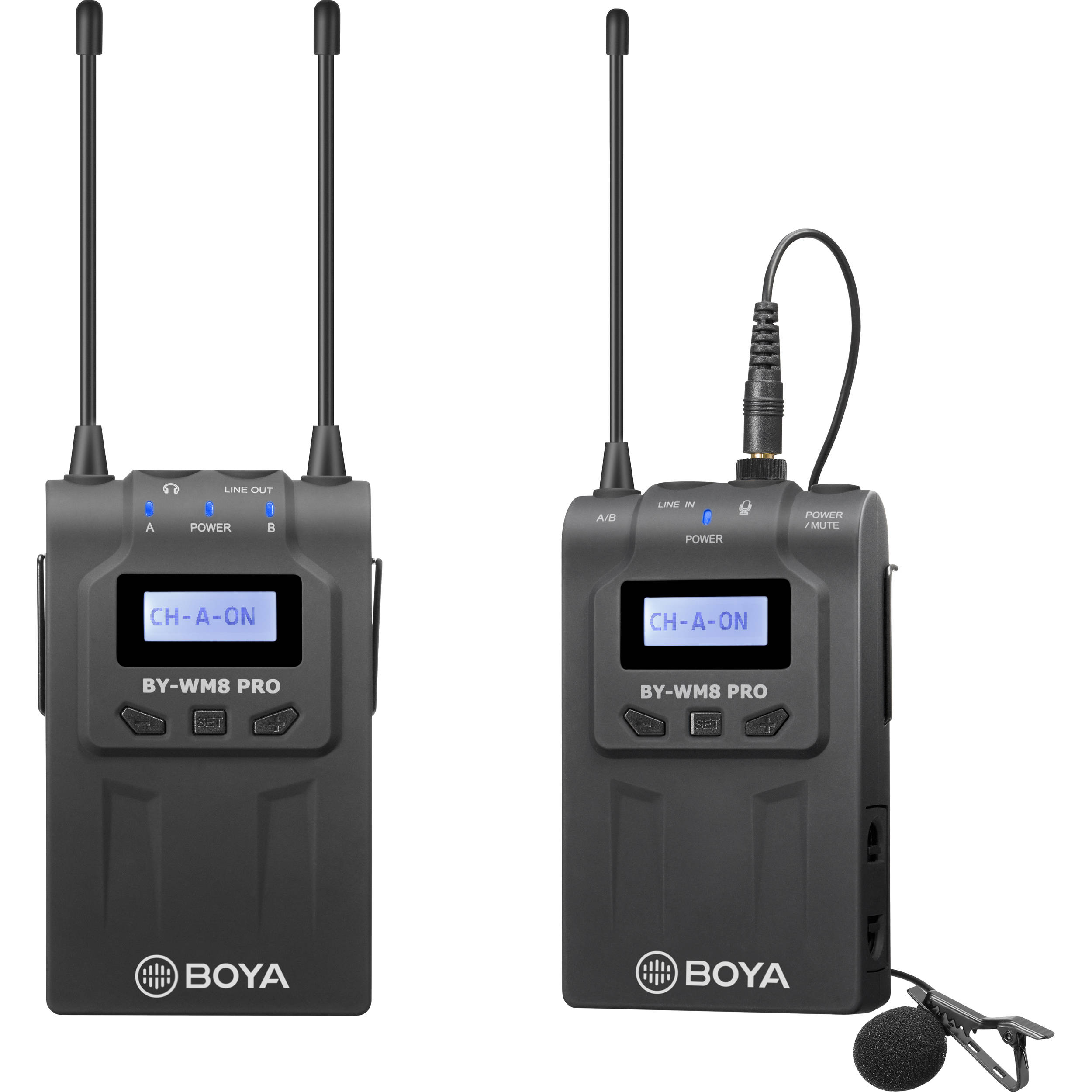

TheĀ BY-WM8 Pro-Kit 1 UHF Dual-Channel Wireless Lavalier SystemĀ fromĀ BOYAĀ includes a UHF dual-channel wireless receiver, a wireless bodypack transmitter, an omnidirectional lavalier microphone, a microphone clip, a foam windscreen, a shoe mount adapter, a 3.5mm to XLR output cable, and a 3.5mm to 3.5mm output cable. This wireless system can be used to capture audio from one subject for electronic news gathering (ENG), electronic field production (EFP), film, business, and educational applications.

Featuring an easy-to-read LCD display, wide switching RF bandwidth, PLL-synthesized tuning, and digital companding circuitry, the BY-WM8 Pro-Kit 1 system is equipped with 48 selectable UHF channels and offers broadcast-quality sound. Other features include selectable stereo and mono modes on the dual-channel receiver, a mute function, LCD-locked function, receiver headphone output for monitoring, and 300′ operation range.

Furthermore, the system is powered by AA batteries (sold separately), which offer up to 6 hours of continuous operation. The BY-WM8 Pro-Kit 1 UHF Dual-Channel Wireless Lavalier System is built with easy and flexible wireless synchronization between transmitter and receiver via infrared, so you will always find a clear channel to transmit on. The user-friendly LCD menu screen is quick and easy to navigate, which makes it suitable for quick, clear, and easy operation.

Digital companding
Up to 48 selectable channels
Dual-channel receiver
Up to 32 MHz of transmission bandwidth
Easy and flexible wireless synchronization between transmitter and receiver via infrared
User-friendly menu operation
Muting function
Locked plugs avoid accidental disconnection
Transmission range up to 300′

BOYA BY-WM6-IIĀ Specs

System
Wireless Transmission Analog UHF
Number of RF Channels 48
Included Transmitters 1 xĀ Bodypack
Diversity Antenna Diversity
RF Frequency Band A:
556.7 to 575.9 MHz
B:
576.3 to 595.6 MHz
RF Bandwidth Up to 32 MHz
Max Operating Range 328.1′ / 100Ā m (Typical)
Max Systems per Setup 1
Encryption None
Receiver
Form Factor Camera-Mount
Mounting Options Shoe-Mount
Antenna 2 xĀ 1/4 Wave Wire, Fixed (Top-Mount)
Number of Audio Channels 2
Audio I/O 1 xĀ 1/8″ / 3.5 mm TRS Female Unbalanced Line Output
1 xĀ 1/8″ / 3.5 mm TRS Female Unbalanced Headphone Output
Power Requirements Battery
Battery Type 2 xĀ AA
Approx. Battery Life 4 Hours
Display & Indicators 1 xĀ Backlit LCD
Operating Temperature 14 to 122°F / -10 to 50°C
Storage Temperature 14 to 131°F / -10 to 55°C
Dimensions 2.6 x 8.2 x 1.1″ / 67 x 208 x 29Ā mm
Weight 3.2Ā oz / 90Ā g (without Batteries)
Transmitter 1
Transmitter
Form Factor Bodypack
RF Output Power Up to 10 mW
Audio I/O 1 xĀ 1/8″ / 3.5 mm TRS Female Unbalanced Input (Lockable)
1 xĀ 1/8″ / 3.5 mm TRS Female Unbalanced Input
Audio Input Level -60 dBV (at 0 dB Gain)
Auto-Level Control No
Frequency Response 20 Hz to 20 kHz
Antenna 1 xĀ 1/4 Wave Wire, Fixed (Beltpack)
Power Requirements Battery
Battery Type 2 xĀ AA (Not Included)
Approx. Battery Life 6 Hours
Display & Indicators 1 xĀ Backlit LCD
Operating Temperature 14 to 122°F / -10 to 50°C
Storage Temperature 14 to 131°F / -10 to 55°C
Dimensions 2.6 x 8.2 x 1.1″ / 67 x 208 x 29Ā mm
Weight 3.2Ā oz / 90Ā g (without Batteries)
Microphone
Form Factor Lavalier
Color Black
Sound Field Mono
Capsule Electret Condenser
Polar Pattern Omnidirectional
Frequency Range 35 Hz to 18 kHz
SNR 74 dB
Sensitivity 30 dB at 1 kHz
Output Connectors 1 xĀ 1/8″ / 3.5 mm TRS Male Unbalanced (Lockable)
Cable Length 3.94′ / 1.2Ā m
Packaging Info
Package Weight 1.525 lb
Box Dimensions (LxWxH) 9.3 x 8.3 x 2″
