Network Adapters

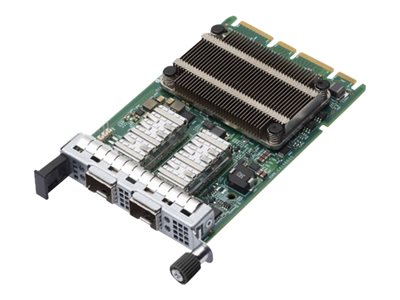

Broadcom NetXtreme E-Series N210P – network adapter – OCP 3.0 – 1Gb Ethernet / 10Gb Ethernet SFP+ x 2
Broadcom NetXtreme E-Series N210P – Network adapter – OCP 3.0 – 1Gb Ethernet / 10Gb Ethernet SFP+ x 2
AED2,099.00
The Broadcom BCM957412N4120C is a dual-port 10 Gb/s PCI Express 3.0 x8 network adapter designed to the Open Compute Project (OCP) 3.0 Design Specification in small form factor with two SFP+ network connectors. The adapter supports SFP+ optical modules and copper direct attach cables. The network adapter uses the Broadcom BCM57412 25GbE MAC controller with an integrated dual-channel 10GbE SFI transceiver.
| General |
|---|
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | Open Compute Project mezzanine (OCP) 3.0 |
| PCI Specification Revision | PCIe 3.0 |
| Networking | Ports |
| 1Gb Ethernet / 10Gb Ethernet SFP+ x 2 |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet |
| Data Transfer Rate | 10 Gbps |
| Capacity | Jumbo frame size: 9 KB |
| Status Indicators | Link/activity |
| Features | WOL, DCBX support, TCP/IP offloading, PXE support, LSO, LRO, RSS, UEFI support, SR-IOV, DCB, TSO, MSI-X, UDP/IP offloading, TSS, iSCSI boot, RoCE, PFC, NC-SI, VXLAN, NVGRE, FLR, MSI, MCTP over SMBus, TruFlow, Interrupt coalescing, ETS, QCN, GENEVE support, vSwitch Acceleration, SMBus 2.0, NetQueue, VMQueue |
| Processor / Memory | Processor: 1 x Broadcom BCM57412 |
| Expansion / Connectivity | Interfaces |
| 2 x 1Gb Ethernet/10Gb Ethernet – SFP+ |
| Miscellaneous | Compliant Standards: MSA SFF-8402 |
| Power | Power Consumption Operational: 7.9 Watt |
| Dimensions & Weight | Width: 3 in |
| Depth: 4.5 in |
| Weight: 3.21 oz |
