Broadcom NetXtreme E-Series N225P – network adapter – OCP 3.0 – 10Gb Ethernet/25Gb Ethernet x 2
Broadcom NetXtreme E-Series N225P – Network adapter – OCP 3.0 – 10Gb Ethernet/25Gb Ethernet x 2
AED2,099.00

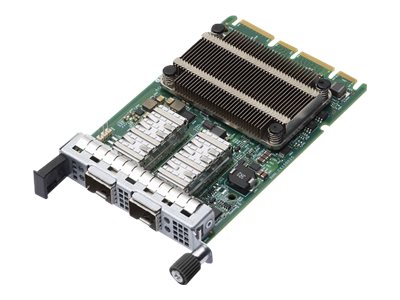

The Broadcom® BCM957414N4140C is a dual-port 25 Gb/s PCI Express 3.0 x8 network adapter designed to the Open Compute Project (OCP) 3.0 Design Specification in small form factor with two SFP28 network connectors. The adapter supports SFP28 optical modules and copper direct-attach cables. The network adapter uses the Broadcom BCM57414 25GbE MAC controller with an integrated dual-channel 25GbE SFI transceiver.
Broadcom’s NetXtreme E-series network controller delivers best-in-class performance and hardware acceleration and offload capabilities that result in higher throughput, higher CPU efficiency, and lower workload latency for TCP/IP as well as RoCE traffic.
Broadcom OCP NIC 3.0 Ethernet adapters utilize the NetXtreme marketleading 25G NRZ, 50G PAM-4, and PCIe 4.0 SerDes technology, ensuring seamless interoperability with Broadcom’s market-leading Top-of-Rack switch and PCIe Express switch solutions which also use the same SerDes technology
| Category | Description |
|---|
| General |
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | Open Compute Project mezzanine (OCP) 3.0 |
| Networking |
| Ports | 10Gb Ethernet/25Gb Ethernet x 2 |
| Connectivity Technology | Wired |
| Data Link Protocol | 10 Gigabit Ethernet, 25 Gigabit Ethernet |
| Features | WOL, IPv6 support, DCBX support, IPv4 support, PXE support, LSO, LRO, RSS, UEFI support, SR-IOV, DCB, TSO, MSI-X, GRE, iSCSI boot, PFC, NC-SI, VXLAN, NVGRE, FLR, MSI, Jumbo Frames support (up to 9000 bytes), MCTP over SMBus, TruFlow, Interrupt coalescing, VMMQ, ETS, QCN, GENEVE support, Low Latency RDMA over RoCE, OCP 3.0 support, vSwitch Acceleration, tunnel-aware stateless offloads, SMBus 2.0, NetQueue |
| Compliant Standards | IEEE 802.3ap, IEEE 802.3az |
| Processor / Memory | Processor: Broadcom BCM57414 |
| Expansion / Connectivity |
| Interfaces | 2 x 10Gb Ethernet/25Gb Ethernet – SFP28 |
| Miscellaneous |
| Compliant Standards | EMC |
| Dimensions & Weight |
| Weight | 3.21 oz |
| Environmental Parameters |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
