Network Adapters

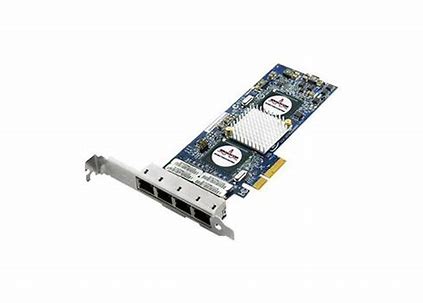

Broadcom NetXtreme II 5709 – network adapter – PCIe x4 – Gigabit Ethernet x 2
Broadcom NetXtreme II 5709 – Network adapter – PCIe x4 – Gigabit Ethernet x 2 – for UCS C220 M3, C240 M3, C420 M3
999.00 د.إ
The Broadcom NetXtreme II 5709 Gigabit Server Adapter is able to simultaneously perform accelerated networking and storage networking on standard Ethernet. The NetXtreme II is a family of Converged Network Interface Controllers (C-NICs) with superior design. These devices also support teaming and failover to improve network application performance and provide server redundancy.
| General |
| Device Type | Network adapter |
| Form Factor | Plug-in card |
| Interface (Bus) Type | PCI Express x4 |
| Networking |
| Ports | Gigabit Ethernet x 2 |
| Connectivity Technology | Wired |
| Cabling Type | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Data Transfer Rate | 1 Gbps |
| Network / Transport Protocol | TCP/IP, IPX/SPX, NetBEUI/NetBIOS, IP/IPX |
| Features | Auto-negotiation, load balancing, wake on LAN (WOL), IPv6 support, Jumbo Frames support |
| Compliant Standards | IEEE 802.2, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3p |
| Processor / Memory |
| Processor | 1 x Broadcom BCM5709C |
| Expansion / Connectivity |
| Interfaces | 2 x 1000Base-T – RJ-45 |
| Compatible Slots | 1 x PCI Express x4 |
| Miscellaneous |
| Compliant Standards | ACPI 2.0 |
| Software / System Requirements |
| OS Required | Microsoft Windows Server 2003, Red Hat Enterprise Linux 4, SuSE Linux Enterprise Server 10, Red Hat Enterprise Linux 5, Microsoft Windows Server 2008 |
| Environmental Parameters |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 131 °F |
| Compatibility Information |
| Designed For | Cisco UCS C220 M3 Entry Smart Play, C220 M3 High-Density Rack Server Large Form Factor Hard Disk Drive, C220 M3 High-Density Rack-Mount Server Small Form Factor, C220 M3 Small Form Factor, C220 M3 Small Form Factor Business Edition, C220 M3 Value Smart Play, C240 M3 High-Density Rack Server (Large Form Factor Hard Disk Drive Model), C240 M3 High-Density Rack-Mount Server Small Form Factor, C240 M3 Performance Smart Play, C240 M3 Value Smart Play, C420 M3 High-Performance Rack Server |
